Motor Size:540K
Shaft Configuration:SK72AA
Rated Power:720W
Peak Torque:32Nm
Rotation Speed:4000rpm
Input Voltage:220VAC
Control Protocol:EtherCAT
Resolution:10000 pulses per revolution
Inertia:Low
Enclosure Type:IP65
Operating Temperature:-20°C to 50°C
Protection Class:UL/cUL, CE, EAC, CCC

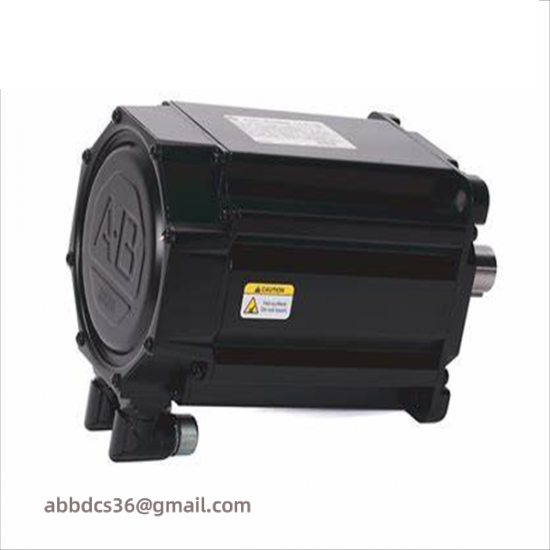

Introducing the MPL-B540K-SK72AA MP-Series low-inertia servo motor, engineered for exceptional performance in demanding industrial settings. This compact motor offers a perfect blend of power and efficiency, making it an ideal choice for applications that require swift and precise movements.
Featuring a robust design, the MPL-B540K-SK72AA is built to withstand harsh environments while delivering consistent torque output across its entire operating range. Its compact size allows for easy integration into tight spaces without compromising on performance.
Equipped with a high-resolution Sin/Cos encoder, this motor ensures accurate position control, essential for applications that demand high precision and repeatability. The encoder provides 51,200 counts per revolution, allowing for precise motion control.
With an IP65 rating, the MPL-B540K-SK72AA is protected against dust and water ingress, ensuring reliable operation even in challenging environments. It is capable of handling continuous loads at 230V AC with a power output of 4.5 kW and can reach peak outputs up to 13.5 kW, making it suitable for a wide range of industrial tasks.
The motor frame size B54 and gear ratio of 72:1 contribute to its high-speed capabilities, enabling it to operate at up to 4000 rpm. This combination of speed and torque makes it particularly effective in applications requiring rapid acceleration and deceleration.
Designed for durability and reliability, the MPL-B540K-SK72AA is a cost-effective solution for enhancing the performance of machinery and automation systems in industries such as automotive, robotics, and manufacturing.
