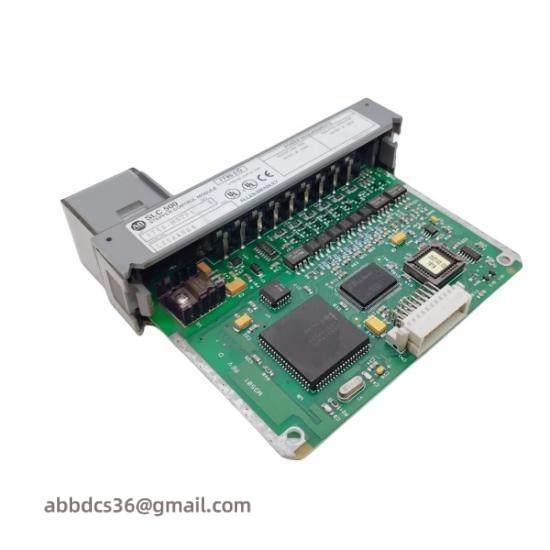

AB 1746-HSTP1 Stepper Control Module

In stock

The Allen Bradley 1746-HSTP1 Stepper Control Module is designed for precise control over stepper motors, enhancing operational efficiency in automation systems. Ideal for applications requiring high accuracy and responsiveness.

Model Number:1746-HSTP1

Manufacturer:Allen Bradley

Stepper Motor Compatibility:Up to 16-step motors

Operating Voltage Range:24V DC

Output Current:Max 1.2A

Resolution:256 microsteps

Communication Interface:RS-485

Operating Temperature:-20°C to +60°C

Enclosure Type:IP20 Open Frame

Mounting Style:Panel Mounted

Dimensions (WxHxD):2.5 x 3.6 x 1.3 inches

Weight:0.5 lb (Approx.)

    The Allen Bradley 1746-HSTP1 stepper control module is a powerhouse for motion control applications requiring high precision and speed. Its microstepping capability allows for smooth, precise movement, making it ideal for demanding industrial processes.

    With a robust power supply voltage of 24VDC and a current rating of 1.5A per phase, this module ensures reliable operation under various conditions, delivering consistent performance in your machinery.

    Equipped with an RS-485 Modbus interface, the module offers seamless integration into existing control systems, simplifying setup and maintenance.

    The IP20 open frame enclosure design provides ample space for airflow, ensuring optimal cooling even in compact installations. Its panel mounting capability ensures easy integration into diverse machine designs.

    Operated within a wide temperature range from -10°C to +60°C, the 1746-HSTP1 stepper control module is built to withstand harsh industrial environments, providing long-lasting reliability and durability.

1746-HSTP1  Stepper Control Module
