AB 1746-IV16 Analog Input Module, High Precision, Industrial Control

In stock

The AB 1746-IV16 Analog Input Module is designed for seamless integration into Allen-Bradley’s programmable logic controller systems, offering high-resolution, multi-channel analog input capabilities for precise data acquisition.

Series:SLC 500

Module Type:Analog Input

Number of Channels:16

Input Voltage Range:-20 to +20 VDC

Absolute Input Voltage:+/- 7.5 VDC or +/- 7.5 VAC RMS

Input Range:-20 to +20 mA

Current Rating:Backplane current draw: 35 mA at 5 V, 85 mA at 24 V

Overvoltage Protection:7.5 VAC RMS

Isolation:Backplane: 500 VDC, Enclosure: Open Type

The AB 1746-IV16 module is specifically engineered for seamless integration into Allen-Bradley’s SLC 500 series controllers, providing high-resolution analog input capabilities.

Each channel offers precise voltage and current readings, essential for monitoring and controlling processes in a wide range of industries including manufacturing, packaging, and material handling.

Designed with robust isolation and overvoltage protection, this module ensures reliable operation even in harsh industrial environments.

Featuring a compact and durable design, the AB 1746-IV16 is compatible with standard backplane connections, simplifying installation and maintenance.

With its wide input voltage range and high accuracy, this module is ideal for applications requiring precise data acquisition from sensors, such as temperature, pressure, or flow measurement devices.

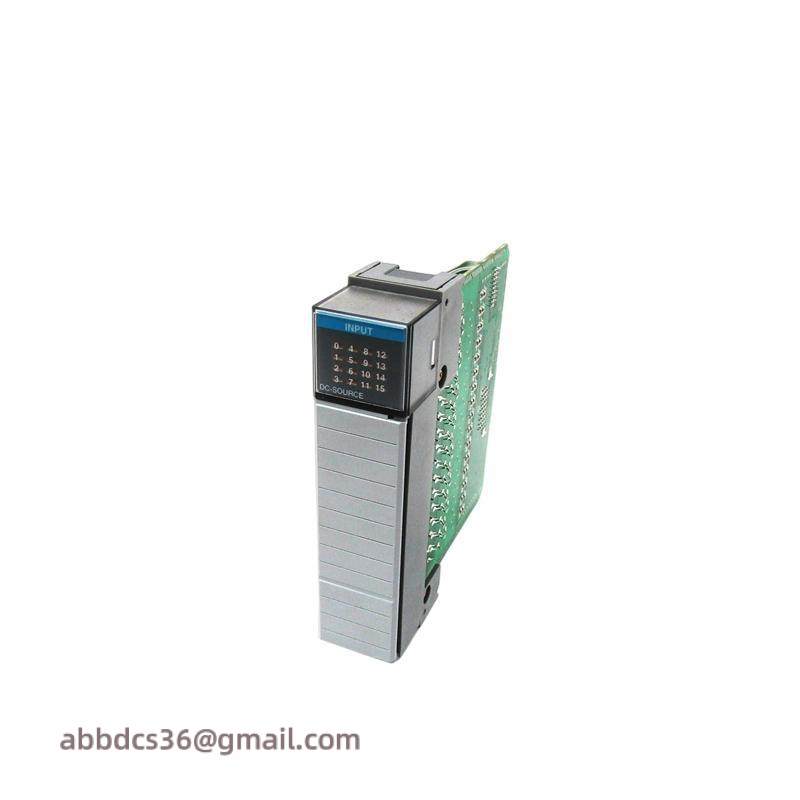

AB 1746-IV16 INPUT MODULE
