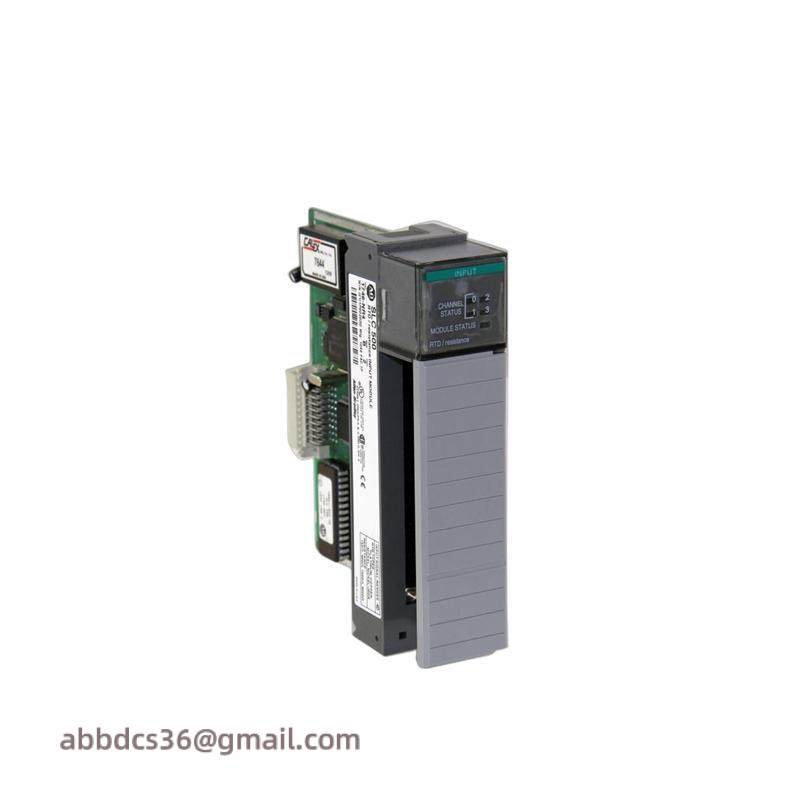

Model Type:SLC500
Model Number:1746-NR4
Manufacturer:Allen-Bradley
Analog Input Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Max.)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Designed with high-resolution analog inputs for precise signal acquisition in demanding industrial environments.
Optimized for compatibility with Allen-Bradley’s SLC500 family of programmable logic controllers (PLCs), enhancing operational efficiency.
Equipped with advanced overvoltage protection mechanisms to safeguard against electrical surges and maintain system integrity.
Offers a versatile interface compatible with ControlNet (coax) networks, facilitating seamless integration within larger industrial automation systems.
Features a compact yet robust design, ensuring reliable operation in various industrial settings, from manufacturing floors to complex process control environments.
