Product Type:Discrete Digital DC Output Module
Model Number:1746-OW16
Manufacturer:Allen-Bradley
Module Type:SLC 500
No. of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10-50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating (Backplane):0.28 A
Continuous Current per Output:0.25 A at 60°C
Continuous Current per Module:4 A at 60°C
Isolation (Communication Circuits):500 VDC
Isolation (Backplane):1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% Relative Humidity (non-condensing)

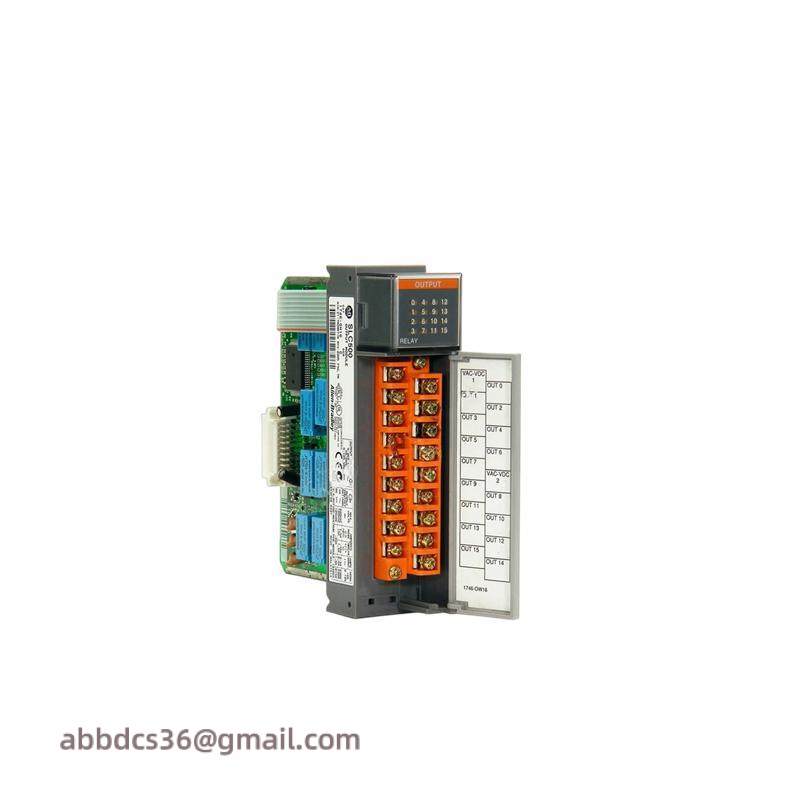

The AB 1746-OW16 Output Module is designed with robust materials to withstand the rigors of industrial environments, ensuring longevity and reliability.
This module supports sourcing operation, providing precise control over industrial equipment through its 16-channel discrete digital outputs.
Its compatibility with Allen-Bradley’s SLC 500 series makes it an ideal choice for enhancing the functionality of existing automation systems without requiring extensive modifications.
Equipped with advanced isolation capabilities, this module ensures effective signal transmission, reducing the risk of interference and enhancing system performance.
With its high current rating and efficient heat dissipation, the AB 1746-OW16 Output Module ensures stable operation even under demanding conditions, making it suitable for a wide range of industrial applications.
