Number of Analog Inputs:4
Number of Analog Outputs:4
Operating Voltage:24V DC
Signal Range:-10V to +10V
Communication Protocol:Profinet
Operating Temperature:-25°C to +60°C
Enclosure Type:IP20
Connection Type:MODBUS
Load Capacity:Up to 600Ω

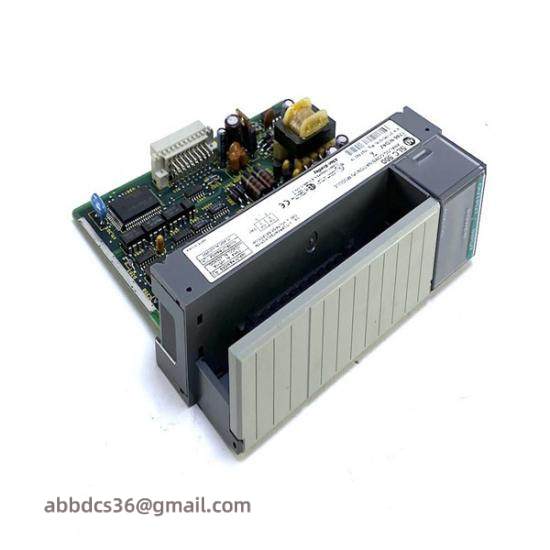

Allen-Bradley’s 746-NIO4V Analog I/O Modules are a cornerstone of industrial automation systems, ensuring accurate and reliable data exchange between control systems and the physical world. These modules are specifically engineered for demanding industrial environments, boasting a wide operating temperature range from -25°C to +60°C, making them suitable for use across various industries including manufacturing, packaging, and process control.
Each module offers 4 independent channels capable of functioning as either inputs or outputs, depending on the application requirements. The high precision of these modules ensures that they can accurately measure voltages, currents, or temperatures, which is critical for maintaining quality control and operational efficiency.
With a maximum current consumption of 15 mA per channel, the 746-NIO4V is designed to operate efficiently without overloading the system. It supports DC 24V power supply, a standard voltage level in many industrial settings, ensuring compatibility and ease of integration.
Communication is facilitated through the Modbus RTU protocol, a widely adopted standard in industrial automation that allows seamless communication between the module and the control system, enhancing the flexibility and scalability of automation networks.
The IP20 enclosure rating signifies that the modules are protected against dust and do not have a splash-proof feature. This rating makes them suitable for most indoor industrial applications where protection against dust is necessary but not against liquids or water splashes.
