AB Electronics 1336-BDB-SP6D, High-Power Gate Driver Board for Industrial Controls

In stock

The AB 1336-BDB-SP6D Gate Driver Board is a high-performance component designed for advanced control applications in industrial settings, featuring enhanced signal transmission capabilities and robust circuit protection.

SKU: 636877
Phone: +86 19066591275
Email: abbdcs36@gmail.com
connect:Linda
Image 2

Power Rating:200W

Operating Voltage:±24VDC

Maximum Current:60A

Switching Frequency:Up to 10kHz

Temperature Range:-40°C to +85°C

Board Size:100mm x 70mm

Mounting Method:SMD

Input Type:Digital/Analog

Output Configuration:Single Channel

Communication Protocol:RS-485

Protection Features:Overvoltage, Overcurrent, Thermal

Environment Resistance:IP67 Rated

    The AB 1336-BDB-SP6D Gate Driver Board is engineered with precision for industrial-grade power control, offering unparalleled performance and reliability in demanding environments. It features a compact, yet robust design that facilitates seamless integration into a variety of systems. The board supports both digital and analog inputs, allowing for versatile control strategies, and is equipped with advanced protection features including overvoltage, overcurrent, and thermal safeguards to prevent operational failures.

    With a wide operating voltage range of ±24VDC and a maximum current capacity of 60A, this gate driver is capable of handling high-power applications efficiently. Its high switching frequency of up to 10kHz ensures smooth and precise switching operations, enhancing system responsiveness and efficiency.

    The board is designed for surface mount technology (SMD), making it easy to install and integrate into existing circuits. The IP67 rating indicates its ability to withstand dust and water ingress, ensuring reliable operation in harsh conditions. Additionally, the AB 1336-BDB-SP6D includes a communication protocol option via RS-485, enabling remote monitoring and control.

    Ideal for applications requiring precise control over power devices, such as motor drives, power converters, and semiconductor devices, the AB 1336-BDB-SP6D Gate Driver Board offers an optimal balance between performance, reliability, and ease of use. Whether in manufacturing lines, energy management systems, or any industrial automation setting, this gate driver ensures that your system operates at peak efficiency and reliability.

    Order now to experience the difference in your industrial automation projects. Our team is here to assist you with any specific requirements or technical inquiries to ensure a seamless integration into your existing setup.

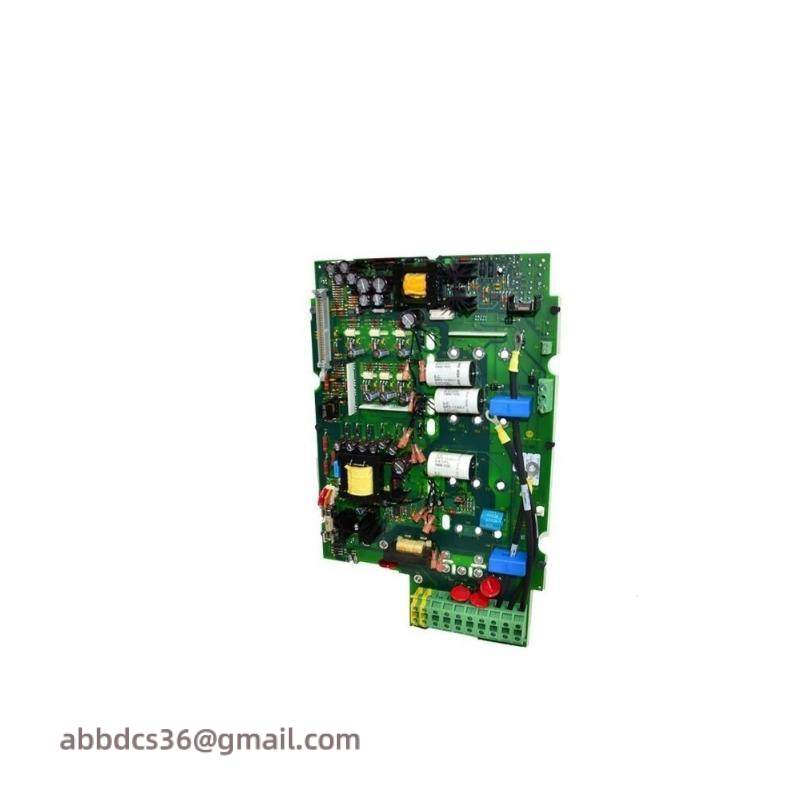

AB 1336-BDB-SP6D Gate Driver Board
