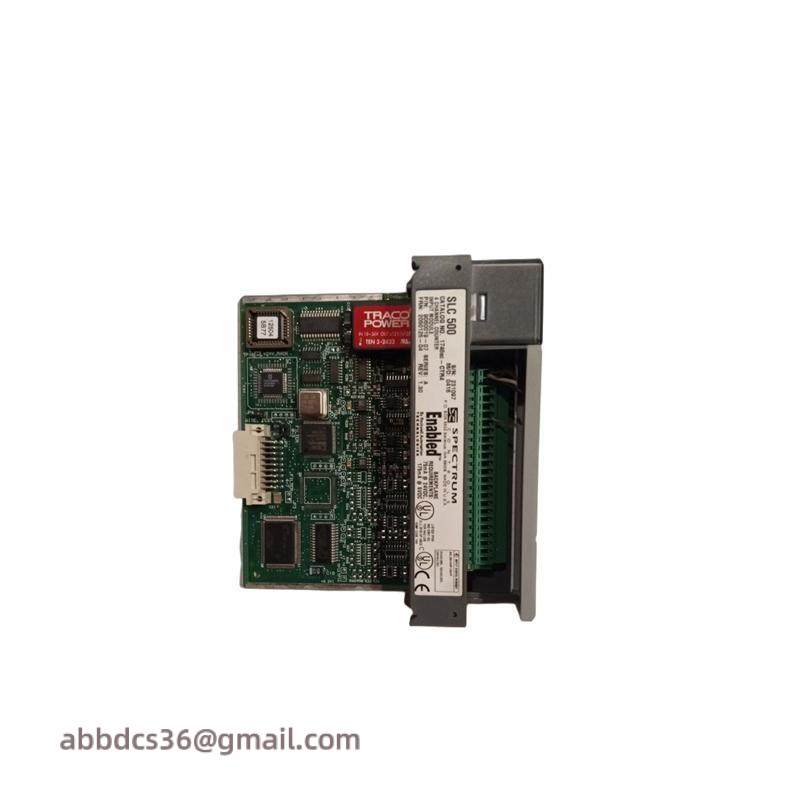

ABB 1746SC-CTR4 Counting Module

Model Type:Counter Module

Manufacturer:ABB

Model Number:1746SC-CTR4

Number of Channels:4

Input Resolution:Up to 10 bits

Operating Temperature:-25°C to +70°C

Power Consumption:Typically < 1W

Communication Interface:RS-485 (ControlNet)

Dimensions (LxWxH):96mm x 48mm x 25.4mm

Weight:Approximately 100g

    The ABB 1746SC-CTR4 Counting Module is a critical component for enhancing precision in industrial automation processes. It excels in handling high-speed counting tasks, ensuring accurate measurement of events triggered by sensors and actuators. With a robust design capable of operating within a wide temperature range (-10°C to +55°C), it ensures reliability in diverse industrial environments.

    Featuring an open collector output, this module can be easily integrated into existing control systems without causing voltage drop issues. Its counter capacity of 65,535 counts allows for extensive use in complex counting applications, making it suitable for a variety of industries including manufacturing, food processing, and logistics.

    Manufactured by ABB, a leader in industrial automation, the 1746SC-CTR4 Counting Module adheres to stringent quality standards, ensuring longevity and efficiency. The compact size and lightweight design facilitate easy installation and maintenance, reducing downtime and increasing operational productivity.

    Designed with user convenience in mind, the module includes comprehensive documentation and support resources, enabling seamless integration and troubleshooting. It supports both direct and indirect connection methods, offering flexibility in system configuration.

    For applications requiring high accuracy and reliability in counting operations, the ABB 1746SC-CTR4 Counting Module is the ideal choice. It seamlessly integrates with ABB’s broader automation portfolio, providing a cohesive solution for industrial automation needs.
