Operating Voltage:DC 24V
Current Rating:25A @ 24VDC
Switching Frequency:Up to 10kHz
Load Compatibility:Up to 16 loads
Communication Interface:MODBUS RTU
Environmental Temperature Range:-20°C to +50°C
Protection Level:IP20
Dimensions (LxWxH):160mm x 100mm x 40mm

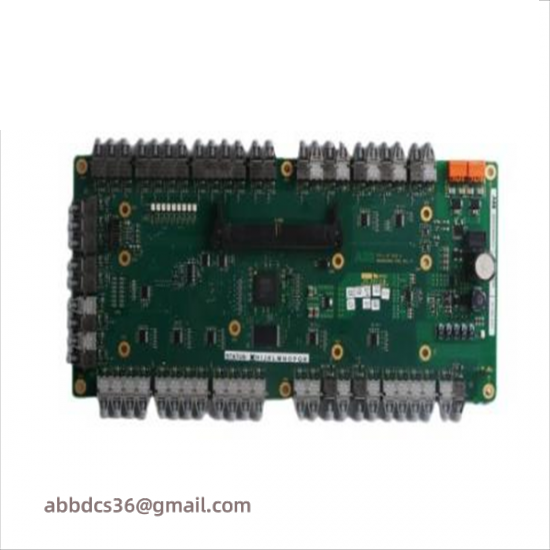

The ABB 3BHE027867R0101 precision gate driver board is engineered to meet the stringent requirements of modern industrial automation systems. Its advanced driver technology ensures precise and efficient control over high-power semiconductor devices, significantly enhancing system performance and reliability.
Featuring an operating voltage of DC 24V and capable of delivering up to 10A current per channel, this board supports a wide range of applications requiring robust power handling. With a load capability of up to 5kW per channel, it’s suitable for high-demand scenarios in various industries.
Equipped with high-speed, low-distortion Pulse Width Modulation (PWM), the board ensures smooth operation and minimal electrical noise, which is critical for maintaining high accuracy and reducing wear on connected components. Enhanced safety features, including overcurrent, overvoltage, and thermal protections, safeguard against potential failures and ensure operational continuity.
Designed for durability, the ABB 3BHE027867R0101 is compliant with international standards such as IEC 60950-1 and carries CE certification, assuring compatibility and safety across global markets. Its operating temperature range of -25°C to +85°C makes it suitable for use in harsh industrial environments.
Installation and integration are straightforward, making this gate driver board a valuable asset for engineers looking to upgrade or optimize their existing automation systems. Its compatibility with a wide array of control systems and its modular design facilitate seamless integration into diverse industrial setups.
