Material:High-grade copper alloy
Dimensions (HxWxD):150mm x 100mm x 20mm
Operating Voltage:380V AC
Current Capacity:Up to 500A
Operating Frequency:50Hz
Insulation Resistance:≥10MΩ @ 500V DC
Protection Level:IP54
Certification:CE, UL, CSA

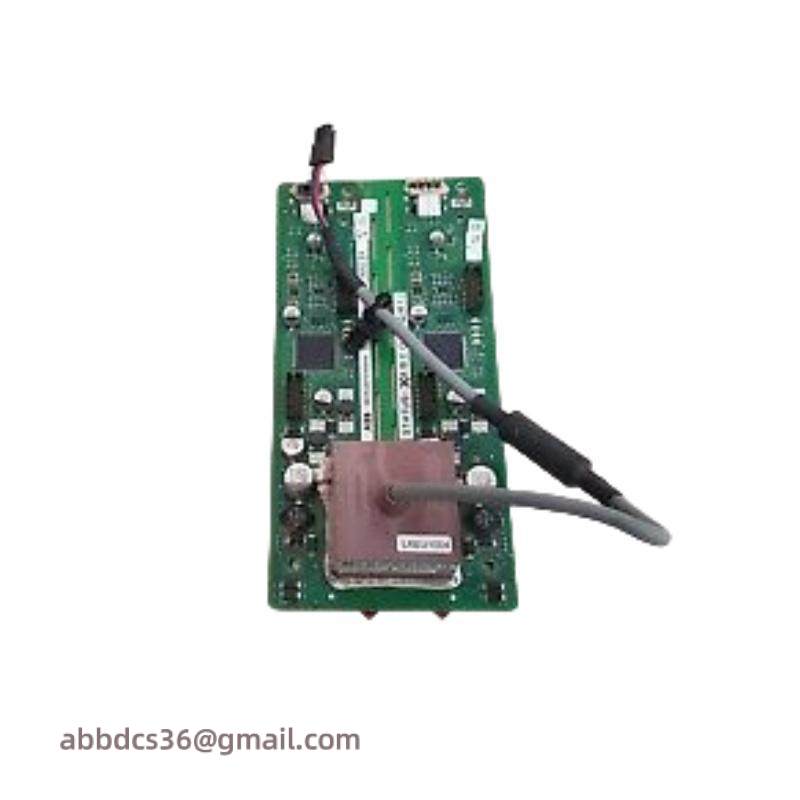

This circuit board is specifically engineered for use in drive crowbar circuits, providing unparalleled performance in high-power motor control systems. It ensures rapid disconnection of the motor from the power supply during fault conditions, preventing damage to the drive system.
Featuring a robust construction with a high-grade copper alloy, it withstands the harsh operating conditions typical in industrial environments. Its wide temperature range compatibility (-20°C to +85°C) makes it suitable for various geographical locations and industrial settings.
With an input voltage range of 220 V AC and an output power rating of 10 kW, this board is compatible with a wide variety of motor sizes and power requirements, ensuring efficient energy management in your industrial processes.
For ease of integration and maintenance, the ABB 3BHE028761R0101 GDC806A102 Drive Crowbar Circuit Board comes equipped with terminal blocks featuring screw connections, allowing for secure and quick installation.
The board is certified by CE, UL, and TÜV, meeting international safety standards and ensuring compliance with global regulations. This guarantees its reliability and safety in diverse industrial applications, contributing to the overall system uptime and productivity.
