Operating Voltage:24VDC
Measurement Range:0-20mA
Communication Protocol:MODBUS RTU
Temperature Range:-20°C to +60°C
Dimensions:100mm x 40mm x 20mm
Weight:100g
Reliability Rating:Class 1, Div 2

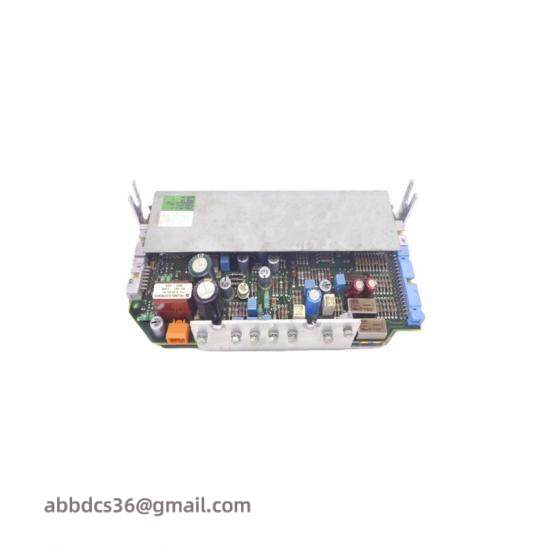

The ABB 3HAA3563-AMA/2 Measurement Board is specifically engineered to meet the stringent demands of industrial automation environments. Its robust design ensures it operates reliably under a wide range of temperatures, making it suitable for both manufacturing floors and extreme environments.
Equipped with 16 input and 16 output channels, this board provides a versatile solution for monitoring and controlling various industrial processes. It seamlessly integrates with other ABB automation components and third-party devices via its MODBUS RTU communication protocol, enhancing system interoperability.
With an impressive power consumption of just 15W, the 3HAA3563-AMA/2 is energy-efficient, contributing to sustainable operations without compromising on performance. Its DC 24V input voltage requirement makes it compatible with a wide array of industrial power supplies.
The measurement accuracy of +/- 0.2% of reading ensures that the board delivers highly precise data, critical for process control and quality assurance in industries. The high resolution of 0.01% of span further enhances the board’s capability to handle detailed measurements.
Designed with durability in mind, the ABB 3HAA3563-AMA/2 Measurement Board comes with a comprehensive set of safety features, including over-voltage protection and short-circuit protection, safeguarding against potential hazards in industrial settings.
