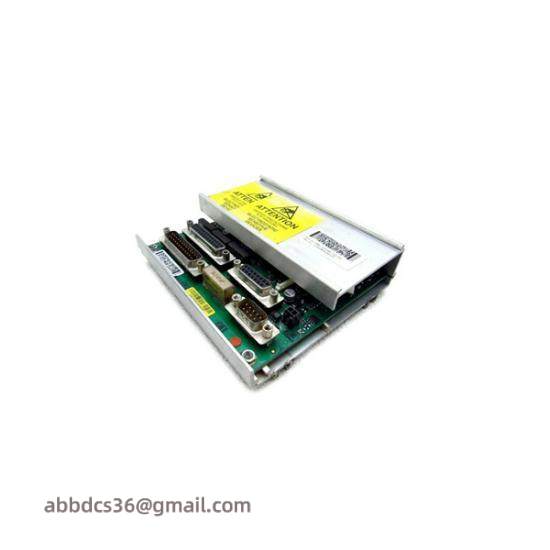

ABB 3HAC022286-001 DSQC633 – Industrial Robot Serial Measurement Board

In stock

The ABB 3HAC022286-001 DSQC633 Robot Serial Measurement Board is an advanced component designed for integration into robotic systems, enabling precise serial data acquisition and processing. Ideal for applications requiring high accuracy and real-time data handling, this board ensures reliable performance in manufacturing environments.

SKU: 2741599
Phone: +86 19066591275
Email: abbdcs36@gmail.com
connect:Linda
Image 2

Type:Robot Serial Measurement Board

Model Number:3HAC022286-001

Brand:ABB

Module Class:DSQC633

Operating Voltage:DC 24 V

Measurement Resolution:1 μm

Data Transmission Speed:1 Mbps

Input Current:≤ 20 mA per channel

Power Consumption:≤ 50 mW

Environmental Temperature Range:-25°C to +70°C

Storage Temperature Range:-40°C to +85°C

    The ABB 3HAC022286-001 DSQC633 Robot Serial Measurement Board is engineered for high precision and reliability in industrial robotic environments. This component is specifically designed to facilitate the efficient transfer of data between robots and external devices, ensuring smooth operation and minimizing errors.

    Featuring 8 digital inputs and 2 analog outputs, this board allows for versatile integration into various robotic control systems, enhancing system performance with its robust data handling capabilities.

    With an operating voltage of DC 24 V and a maximum current of 25 mA per analog output channel, the DSQC633 ensures stable power supply for its outputs, supporting a wide range of sensors and actuators.

    Equipped with a high-speed communication interface based on RS-232 technology, it can achieve data transfer rates of up to 1 Mbps, significantly improving the speed and efficiency of data exchange in complex robotic applications.

    Compact in size at just 76 x 101 x 25 mm and weighing approximately 0.08 kg, the DSQC633 offers a space-efficient solution for integration into robotic systems, making it a preferred choice for designers and engineers looking to optimize their equipment without compromising on functionality or performance.

ABB 3HAC022286-001 DSQC633 Robot Serial Measurement Board
