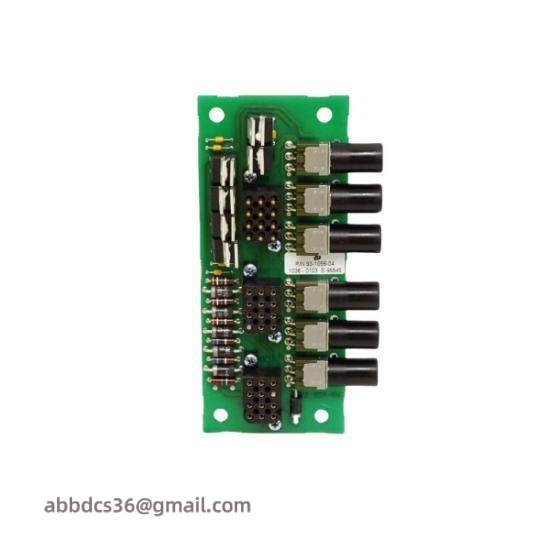

ABB 3HAC16035-1 DSQC 563 Brake Release Board – Control Module for Advanced Industry Applications

Brand:ABB

Model:DSQC 563

Part Number:3HAC16035-1

Weight:0.25 kg

Type:Brake Release Board

Series:DSQC

Module Type:I/O Extension

Operating Temperature:-20°C to +60°C

Voltage Range:24 V DC

Input Capacity:24 VDC, 50mA per channel

Output Capacity:24 VDC, 1.0A per channel

Connector Type:M8 x 0.8mm

Certifications:[“CE”,”UL”]

    Engineered for seamless integration into ABB’s industrial automation platforms, the DSQC 563 Brake Release Board 3HAC16035-1 provides enhanced control capabilities for braking systems.

    With its compact size and robust design, this board ensures efficient use of space and reliability in harsh industrial conditions.

    Featuring an M8 connector system, it simplifies installation and maintenance processes, reducing downtime and improving overall system performance.

    This board supports up to 16 digital inputs and 16 digital outputs, making it suitable for a wide range of applications requiring precise control over braking mechanisms.

    Designed with safety and reliability in mind, the DSQC 563 Brake Release Board is certified to international standards, ensuring it meets stringent safety requirements for industrial environments.
