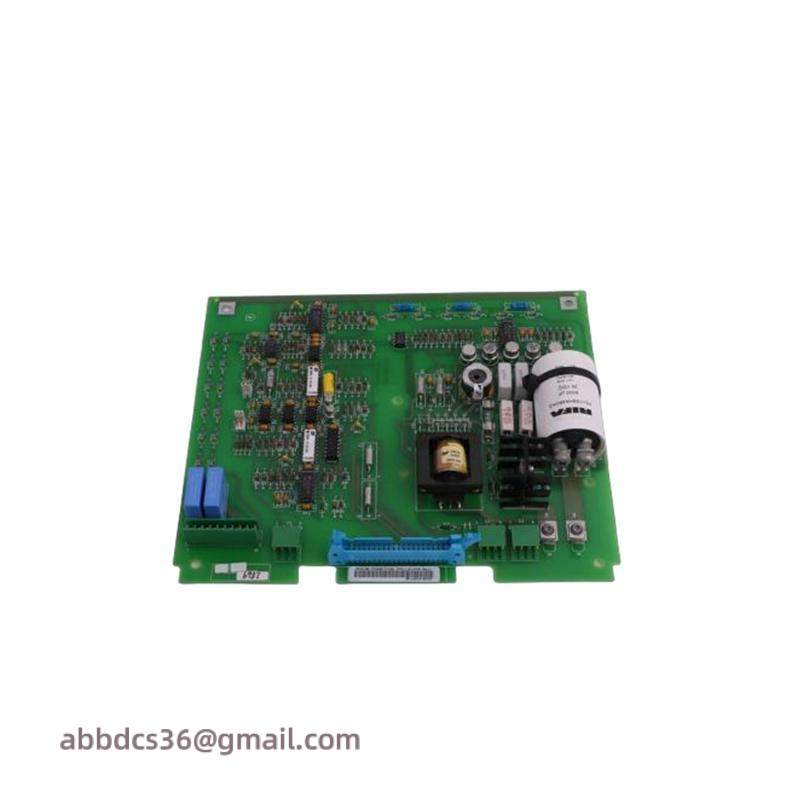

Module Type:IGCT
Model Number:5SHY5055L0002
Sub-Model:3BHB026114R0001
Operating Voltage:1200V DC
Current Rating:2000A
Switching Frequency:20kHz
Operating Temperature Range:-40°C to +125°C
Insulation Resistance:≥10MΩ @ 500VDC
Power Dissipation:≥1000W
Engineered with advanced semiconductor technology, the ABB 5SHY5055L0002 – 3BHB026114R0001 IGCT Module delivers exceptional power handling capabilities, ensuring smooth and efficient operation in demanding industrial environments.
This high-performance module boasts an aluminum alloy construction, which not only provides robustness but also enhances thermal dissipation, crucial for maintaining peak performance over long operational periods.
Designed for wide temperature ranges (-40°C to +85°C), this IGCT Module is suitable for deployment in harsh industrial settings, from cold storage facilities to hot manufacturing plants.
Featuring an AC 230V, 50/60Hz input and capable of delivering up to 5000A output current, it is ideal for large-scale power conversion tasks, including drive systems, renewable energy integration, and heavy-duty machinery control.
With a response time of ≤1ms, the module ensures instantaneous switching, reducing downtime and improving system responsiveness. Its IP20 protection class allows for safe operation in non-hazardous areas, ensuring both operator safety and equipment integrity.
