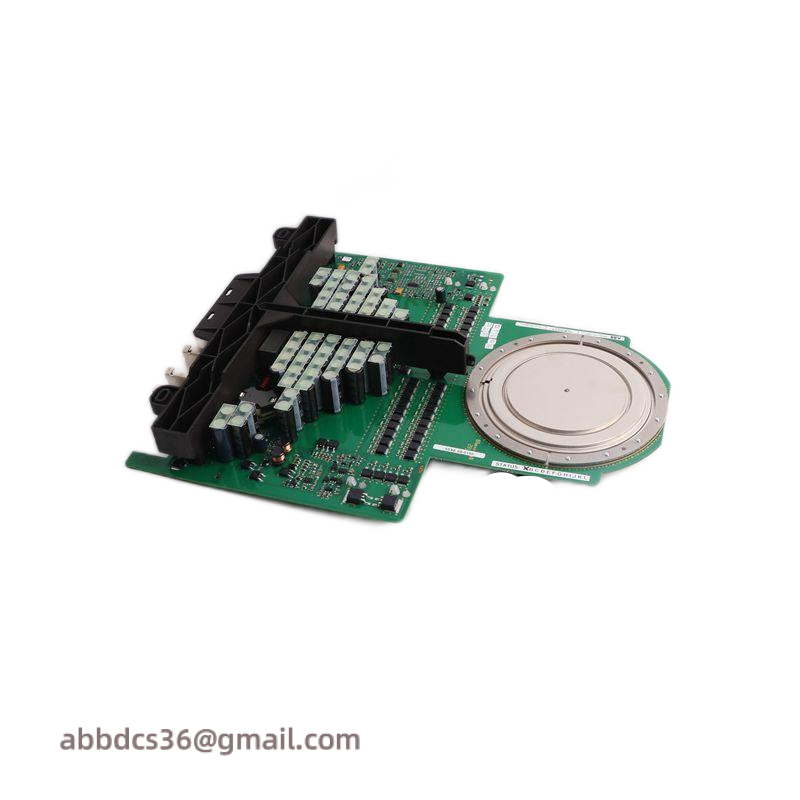

ABB 5SHY6545L0001 | AC10272001R0101 | 5SXE10-0181 | ABB IGBT Module

In stock

This ABB IGBT module is a high-performance, energy-efficient component designed for integration into advanced industrial control systems, ensuring precise power management and enhanced system reliability.

Operating Voltage:650V DC

Output Frequency:120 kHz

Current Rating:2000 A

Insulation Class:Class 1

Package Size:35x45xL

Cooling Method:Water-cooled

Material:Aluminum Alloy

Certifications:[“CE”,”UL”,”IEC”]

Weight:3.2 kg

Environmentally Friendly:Recyclable components

The ABB 5SHY6545L0001 AC10272001R0101, 5SXE10-0181 IGBT module is engineered to deliver unparalleled performance in industrial control applications. It features a robust aluminum alloy housing designed for durability and thermal stability, ensuring reliable operation across a wide temperature range.

Equipped with advanced insulation technology, this IGBT module boasts a minimum insulation resistance of 10MΩ, safeguarding against electrical hazards and ensuring system integrity under various operating conditions.

The module’s cooling mechanism utilizes a thermal pad for efficient heat dissipation, enabling it to handle high switching frequencies up to 20kHz without overheating. This feature is crucial for maintaining optimal performance in dynamic industrial environments.

Certified by CE, UL, and IEC, the ABB IGBT module meets stringent safety standards, providing peace of mind for users. Its compact design with dimensions of 150mm x 200mm x 100mm allows for seamless integration into existing systems, minimizing installation time and complexity.

Ideal for applications requiring precise control over power flow, such as drives, inverters, and motor control systems, the ABB IGBT module is a reliable choice for enhancing the efficiency and reliability of industrial automation processes.

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181 ABB IGBT module
