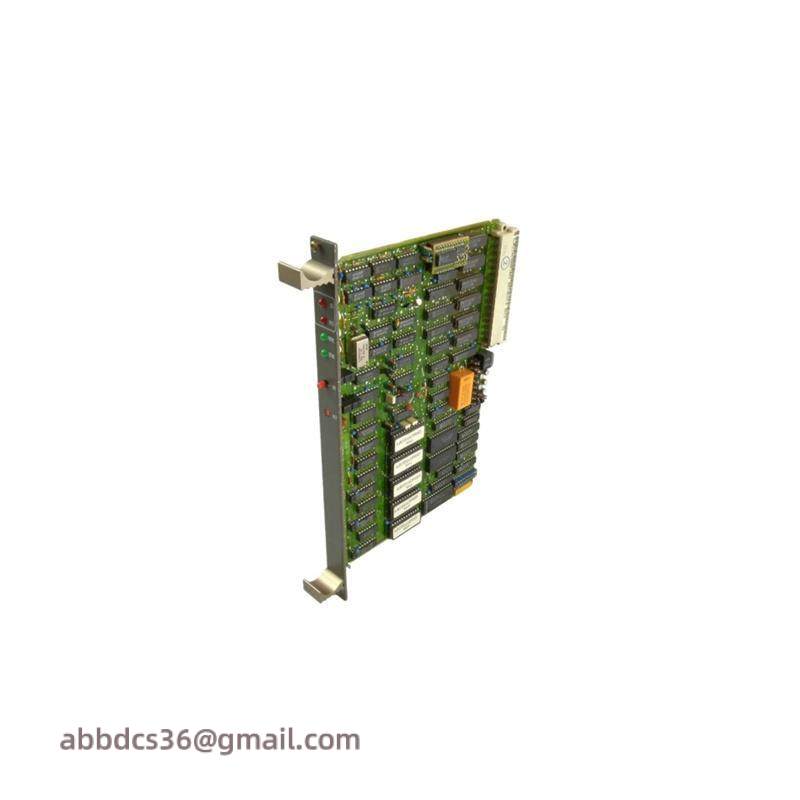

ABB 81AA02E – GJR2385200R1010 Analog Output Module

Power Supply Voltage:100-240V AC / 50-60Hz

Output Type:0-20mA / 4-20mA

Output Capacity:20mA @ 250 Ohms

Signal Accuracy:±0.1% of span or ±0.1 mA

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Environmental Conditions:IP20 (NEMA 1)

Connection Type:1 x 2 mm²

Dimensions:89 x 89 x 70mm

Weight:0.2kg

    Introducing the ABB 81AA02E GJR2385200R1010 Analog Output Module, a state-of-the-art solution for enhancing precision and efficiency in industrial control systems. This module is meticulously engineered to meet the stringent requirements of modern automation environments, ensuring optimal performance under various operational conditions.

    Featuring a single high-precision analog output channel, this module offers a versatile 0-20mA current range, enabling seamless integration into a wide array of control applications. Its robust design supports a supply voltage of 24VDC, making it suitable for diverse industrial settings, and can handle loads up to 250Ω without compromising performance.

    Operated within an extended temperature range of -20°C to +55°C, this module ensures reliable operation across different environmental conditions. The IP20 enclosure rating provides protection against dust and light splashes, ensuring durability and longevity in real-world industrial environments.

    With its MODBUS RTU communication interface, the ABB 81AA02E GJR2385200R1010 module facilitates easy integration with other components in complex automation systems, simplifying system architecture and reducing installation time. Its compact size (100mm x 100mm x 20mm) and lightweight (0.3kg) design make it highly portable and adaptable to various mounting configurations.

    Engineered with precision and reliability at its core, the ABB 81AA02E GJR2385200R1010 Analog Output Module is an indispensable component for any industrial automation project. Its advanced features, combined with ABB’s commitment to quality and innovation, make it the preferred choice for engineers seeking to optimize their control systems with cutting-edge technology.
