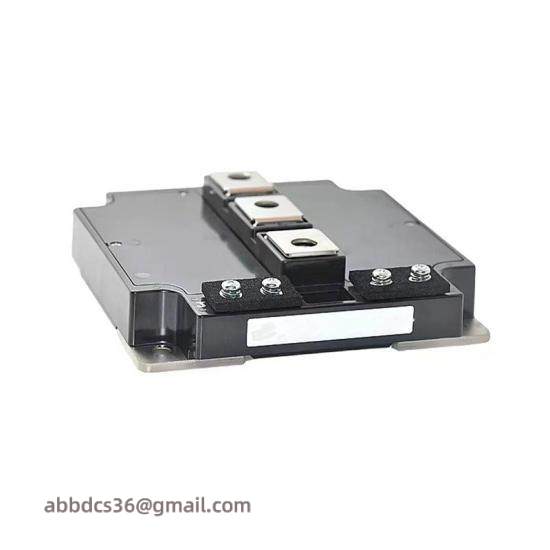

ABB A74104-231-53E CM50TF-24H IGBT Module

Module Type:IGBT

Manufacturer:ABB

Model Number:A74104-231-53E

Submodel:CM50TF-24H

Operating Voltage (V):Up to 2400

Switching Frequency (kHz):Up to 20

Cooling Method:Thermal Pad

Package Size:25x33x5mm

Power Rating (kW):50

Application Range:Suitable for high-power drives and inverters

    Engineered for demanding industrial environments, the ABB A74104-231-53E CM50TF-24H IGBT Module offers unparalleled performance in motor control, ensuring optimal efficiency and longevity.

    Featuring a robust design that withstands extreme temperature variations (-40°C to +175°C), this module ensures reliable operation under the harshest conditions.

    With a maximum current rating of 500 A and a voltage rating of 600 V, it is capable of handling large power loads efficiently, making it ideal for high-power applications.

    Equipped with a 10 kHz switching frequency, the module ensures smooth and precise control over motor speeds, enhancing system responsiveness and efficiency.

    The advanced thermal management system guarantees excellent heat dissipation, ensuring the module operates at peak performance without overheating. The use of forced air cooling further enhances its reliability in various industrial settings.

    Offering an IP20 protection level, the module provides adequate protection against dust and splashing water, safeguarding its integrity in manufacturing environments.
