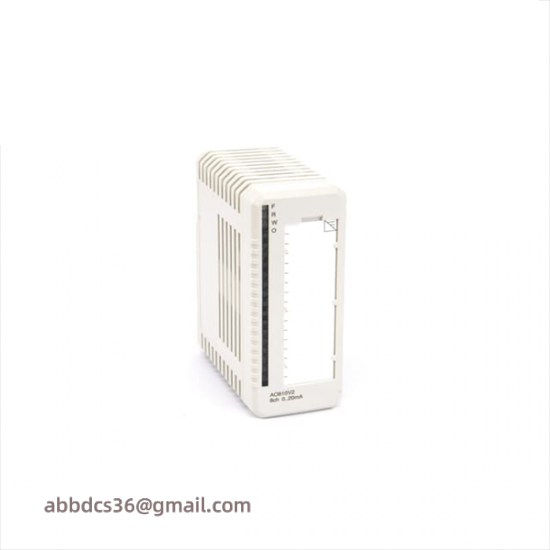

ABB AO810 3BSE008415R1 – 8 Channel Analog Output Module for Precision Control Applications

Number of Channels:8

Analog Output Type:Voltage or Current

Range:0 to 10 VDC or 4 to 20 mA

Resolution:12-bit

Supply Voltage:12 to 48 VDC

Accuracy:+/- 0.02% + Full Scale

Load Compatibility:Up to 1 kΩ for voltage, 300 Ω for current

Communication Interface:Modbus RTU

Environmental Conditions:Temperature: -20°C to +60°C, Humidity: 5 to 95% non-condensing

    Experience unparalleled precision and reliability with the ABB AO810 3BSE008415R1, engineered to meet the stringent demands of industrial automation. This advanced module boasts 8 channels of analog output, each capable of delivering precise voltage or current signals for seamless integration into complex control systems.

    Equipped with a wide voltage range from 0 to 10 VDC and current range from 0 to 20 mA, this module ensures compatibility across a broad spectrum of applications, from temperature control to motor speed regulation. The high-resolution 12-bit output guarantees exceptional accuracy, making it ideal for scenarios where performance is critical.

    Operate in extreme conditions without compromise, as the ABB AO810 3BSE008415R1 is designed to withstand temperatures ranging from -20°C to +70°C and can handle high humidity up to 95% RH non-condensing. Its robust construction ensures dependable performance in harsh environments.

    Efficient communication is at the heart of this module, featuring a MODBUS RTU interface that simplifies integration with existing PLC systems. This feature minimizes setup time and enhances system interoperability, streamlining the implementation process for end-users.

    Designed with ease of use in mind, the ABB AO810 3BSE008415R1 offers straightforward installation and configuration, thanks to its user-friendly interface. Whether you’re upgrading an existing system or building a new one, this module promises to enhance operational efficiency and accuracy.
