Module Type:IGBT
Model Number:BGAD-01C
Operating Temperature Range:-40°C to +125°C
Max Forward Current (IF(A)):500A
Max Collector Emitter Voltage (VCES):650V
Switching Frequency:20kHz
Cooling Method:Thermal Pad and Screwed Heat Sink
Insulation Resistance:>10MΩ @ 500VDC
Package Type:TO-247

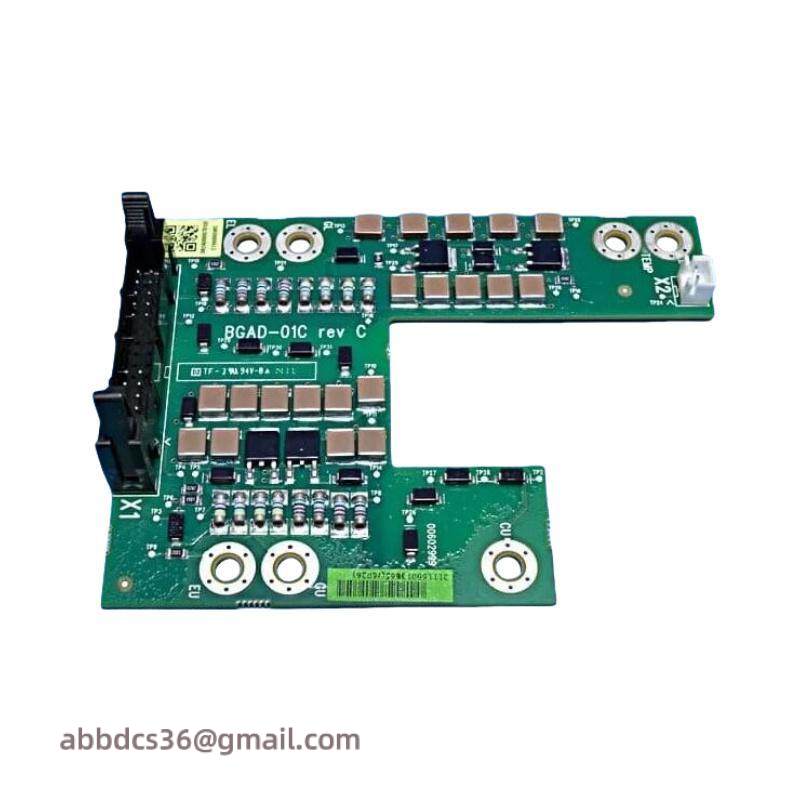

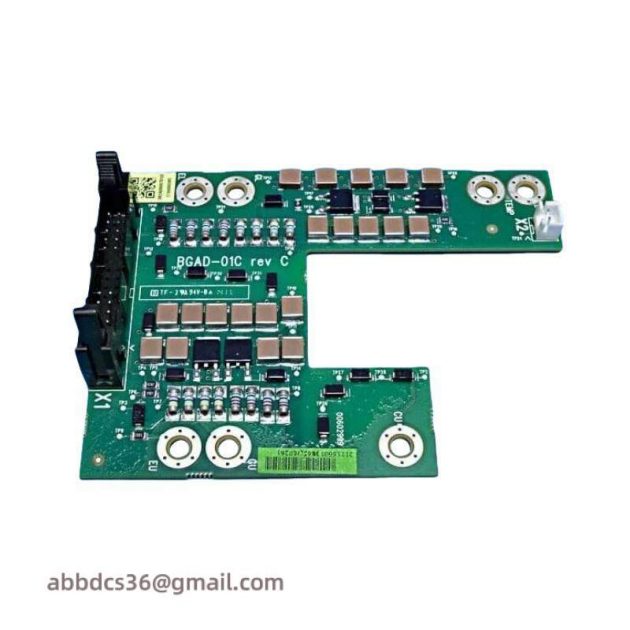

The ABB BGAD-01C IGBT Module is engineered to deliver unparalleled performance in demanding industrial environments. Its cutting-edge technology ensures seamless integration into complex systems, enhancing overall system efficiency.
Featuring a robust water-cooling system, this module is designed to maintain optimal operating temperatures even under heavy load conditions, ensuring prolonged lifespan and continuous operation without interruptions.
With a wide operating voltage range and a high current capacity, the ABB BGAD-01C is suitable for a variety of industrial applications, from power generation to manufacturing processes, where precise and reliable power conversion is critical.
The module’s insulation class of 170 provides exceptional protection against electrical shocks and ensures safe operation, meeting the stringent safety standards of industrial environments.
Installation and maintenance are simplified with user-friendly design features and comprehensive documentation, making it accessible to a broad range of technical skill levels. This ensures minimal downtime and easy integration into existing systems.
