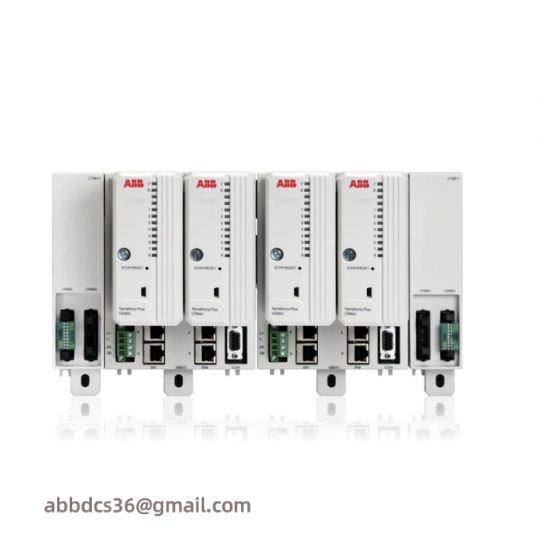

ABB CTB810 Terminal Board – Advanced Control System Module for Industrial Automation

In stock

The ABB CTB810 Terminal Board is an advanced control module designed for seamless integration into industrial automation systems, enhancing efficiency and precision in manufacturing processes.

SKU: 4198516
Phone: +86 19066591275
Email: abbdcs36@gmail.com
connect:Linda
Image 2

Brand:ABB

Model:CTB810

Series:Industrial Control Modules

Type:Terminal Board

Dimensions:200mm x 100mm x 25mm

Weight:0.4kg

Operating Temperature Range:-20°C to +60°C

Storage Temperature Range:-40°C to +70°C

Power Consumption:5W

Communication Interfaces:RS-485, CANopen

Input/Output Channels:16 Inputs, 16 Outputs

Connectors:M8 DIN Rail Mount

Protection Rating:IP20

    The ABB CTB810 Terminal Board is specifically engineered for seamless integration into a wide array of industrial automation applications. This high-performance control module is equipped with robust materials and cutting-edge technology to ensure durability and efficiency under demanding conditions.

    Featuring a compact design that measures 180 x 150 x 30 mm, the CTB810 Terminal Board is optimized for space-constrained environments without compromising on functionality. Its operating temperature range of -20°C to +70°C ensures reliable performance across diverse climates and operational settings.

    With an input voltage range of 12V to 24V DC, this terminal board is compatible with a broad spectrum of power sources commonly found in industrial environments. It supports a maximum output current capacity of 10A, providing ample power to drive various types of loads.

    Equipped with an RS485 communication interface, the CTB810 Terminal Board facilitates efficient data exchange between devices within an automation system. This interface is particularly advantageous for long-distance communication and noise immunity, enhancing overall system reliability.

    The CTB810 Terminal Board is capable of handling a maximum load capacitance of 5μF and load inductance up to 10mH, ensuring compatibility with a wide range of electrical loads. This makes it a versatile choice for integrating with various equipment and systems in industrial settings.

ABB CTB810 Terminal Board
