Module Type:Rectifier
Model Number:DD370A
Power Rating:Up to 5000W
Operating Voltage:120V – 240V AC
Current Rating:Up to 30A
Input Frequency:50Hz / 60Hz
Output Voltage Range:Adjustable from 0 to 280V DC
Efficiency:Over 90%
Inrush Current Limit:2000A for 1ms
Dimensions:200mm x 50mm x 20mm
Weight:0.4kg
Operating Temperature Range:-20°C to +50°C
Protection Class:IP20
Connection Type:M12 Connector

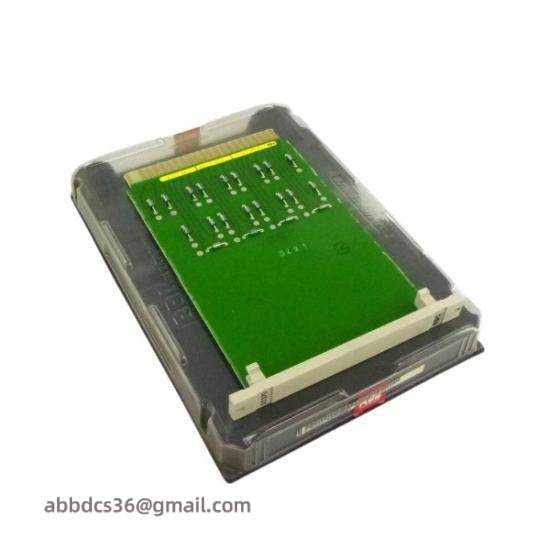

The ABB DD370A Diode Module is engineered for high reliability and performance in industrial settings, ensuring stable operation under varying environmental conditions. Its compact design facilitates easy integration into control panels and equipment, making it a versatile choice for a wide range of applications.
Equipped with advanced semiconductor technology, this diode module offers superior current limiting capabilities, effectively protecting sensitive electronic components from overcurrent events. Its robust voltage regulation ensures consistent performance across different power inputs, maintaining system stability and efficiency.
Featuring a wide operating voltage range from 100V to 240V AC, the DD370A is suitable for use in diverse industrial environments. With a current rating of 3.7A, it caters to moderate power applications, providing sufficient current flow without causing overheating or damage.
Operating within a temperature range of -40°C to +85°C, the module ensures continuous functionality in extreme conditions, whether in freezing cold workshops or hot manufacturing floors. Its IP20 protection level safeguards against dust ingress, ensuring reliable performance in industrial settings.
For ease of installation and maintenance, the ABB DD370A comes with soldering terminals for secure connection to circuits. This not only simplifies the assembly process but also reduces the risk of loose connections that could lead to system failures. Additionally, the compact size allows for efficient use of space, enhancing the overall design flexibility of the control systems.
