Operating Temperature:-25°C to +70°C
Storage Temperature:-40°C to +85°C
Power Consumption:≤ 1 W
Input Voltage Range:12 VDC ±10%
Output Voltage:±12 VDC
Max Counting Rate:Up to 1 MHz
Counter Capacity:32-bit
Communication Interface:Modbus RTU

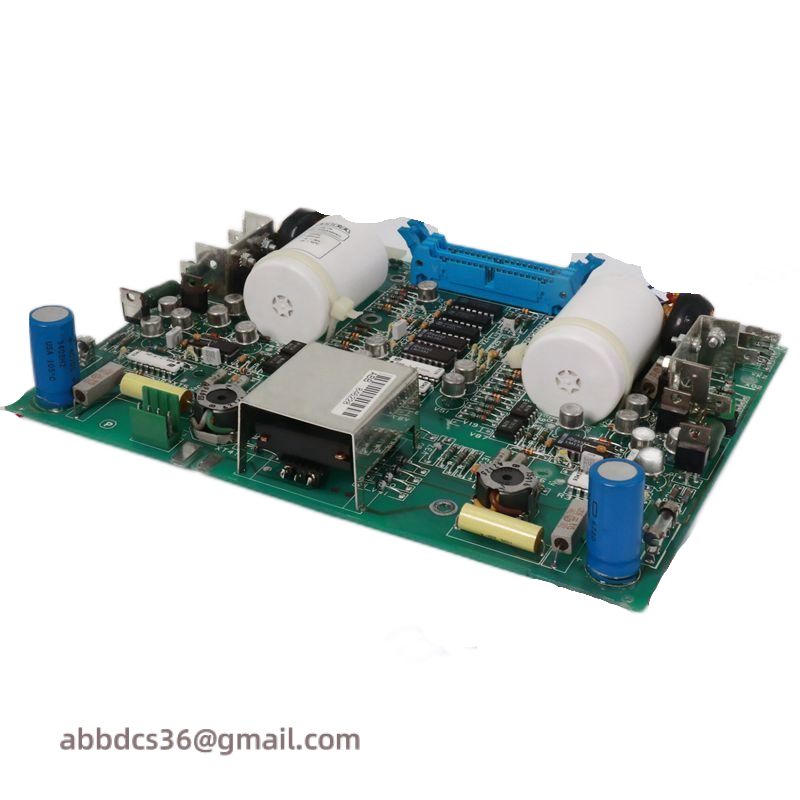

The ABB DSDP 160 Pulse Counter Board is engineered for critical applications requiring precise and reliable pulse counting. It is an indispensable component for enhancing the accuracy and efficiency of industrial automation processes.
Featuring a robust design that withstands extreme environmental conditions from -25°C to +70°C, this board ensures stable operation in diverse industrial settings.
With a low power consumption of ≤ 1 W and a wide input voltage range of 12 VDC ±10%, the ABB DSDP 160 is suitable for various power supply scenarios without compromising performance.
Equipped with a ±12 VDC output voltage, it provides a versatile solution for interfacing with other system components, ensuring smooth integration within complex automation setups.
Capable of handling up to 1 MHz counting rates, the 32-bit counter capacity allows for precise measurement of high-speed events, making it ideal for applications where accuracy and speed are paramount.
Built-in Modbus RTU communication interface facilitates seamless connectivity and data exchange with control systems, enabling efficient monitoring and control over industrial processes.
