Operating Voltage:DC 24V
Counting Range:Up to 100,000 pulses per cycle
Accuracy:+/- 0.05% of reading or 0.05% of full scale
Operating Temperature:-20°C to +55°C
Storage Temperature:-40°C to +70°C
Input Current:Max. 10mA per channel
Output Type:Open collector with sinking current capability
Dimensions (mm):76 x 105 x 32
Weight:Approx. 30g

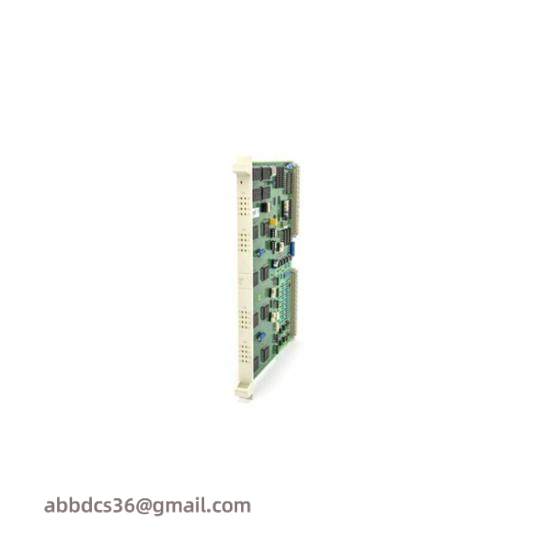

The ABB DSDP170 Pulse Counting Board is engineered to deliver unparalleled precision in industrial automation environments. Its robust design allows for seamless integration into existing systems, ensuring minimal disruption to production workflows.
With its advanced technology, this board accurately counts pulses at frequencies up to 2.5 MHz, making it ideal for applications where high-speed data processing is crucial. Whether you’re measuring distances in manufacturing or speeds in robotics, this board delivers the accuracy you need.
Featuring an innovative design that combines position and speed measurement capabilities, the DSDP170 is a versatile tool for any industrial application. Its compact size and lightweight construction make it easy to install and maintain, even in confined spaces.
The DSDP170 is compatible with a wide range of control systems and protocols, ensuring compatibility and ease of use across various industrial settings. This compatibility extends to both ABB and third-party systems, providing a seamless solution for diverse manufacturing environments.
Designed with durability and reliability in mind, the ABB DSDP170 Pulse Counting Board is built to withstand harsh industrial conditions. It’s a long-term investment in precision measurement, offering consistent performance over extended periods.
