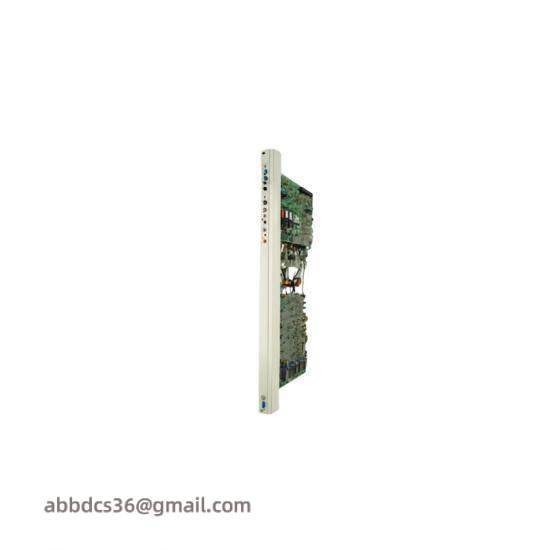

The ABB DSQC 104 Resolver Board is a critical component in industrial automation systems, designed for precise angle and position measurement in complex machinery.

Brand:ABB

Model:DSQC 104

Series:Industrial Control

Module Type:Resolver Board

Operating Voltage:10 to 24 VDC

Angular Resolution:4096 counts/rev

Accuracy:±0.05°

Input Resistance:1 kΩ

Output:2 x Analog Outputs (Current or Voltage)

Communication Interface:RS-232/RS-422/RS-485

Environmental Conditions:Temperature: -20°C to +70°C, Humidity: 5% to 95% non-condensing

The ABB DSQC104 Resolver Board is engineered for precision and reliability in industrial control applications. Its advanced design ensures accurate and continuous position feedback, making it ideal for complex machinery and automation systems where precision is paramount.

With an operating frequency range of 2 kHz, this board provides exceptional resolution accuracy, enabling fine-tuned adjustments and control over mechanical movements. The 0.01° resolution accuracy ensures that every movement is measured with extreme precision, enhancing the overall efficiency and performance of your system.

Featuring a DC 12V power supply voltage, the DSQC104 Resolver Board is versatile and can operate within a wide range of industrial environments. The robust RS-232 communication interface allows seamless data transfer, ensuring reliable communication between your control system and other components.

Engineered for durability and ease of integration, this board is designed with a panel mounting type, allowing for straightforward installation on any standard industrial control panel. Its compact dimensions (76mm x 44mm x 20mm) and lightweight construction (0.02kg) make it suitable for space-constrained environments without compromising on functionality.

Designed with industrial environments in mind, the DSQC104 Resolver Board operates within a temperature range from -20°C to +60°C, ensuring it remains functional in various climatic conditions. This makes it a reliable choice for diverse applications across different industries, including manufacturing, automotive, and robotics.
