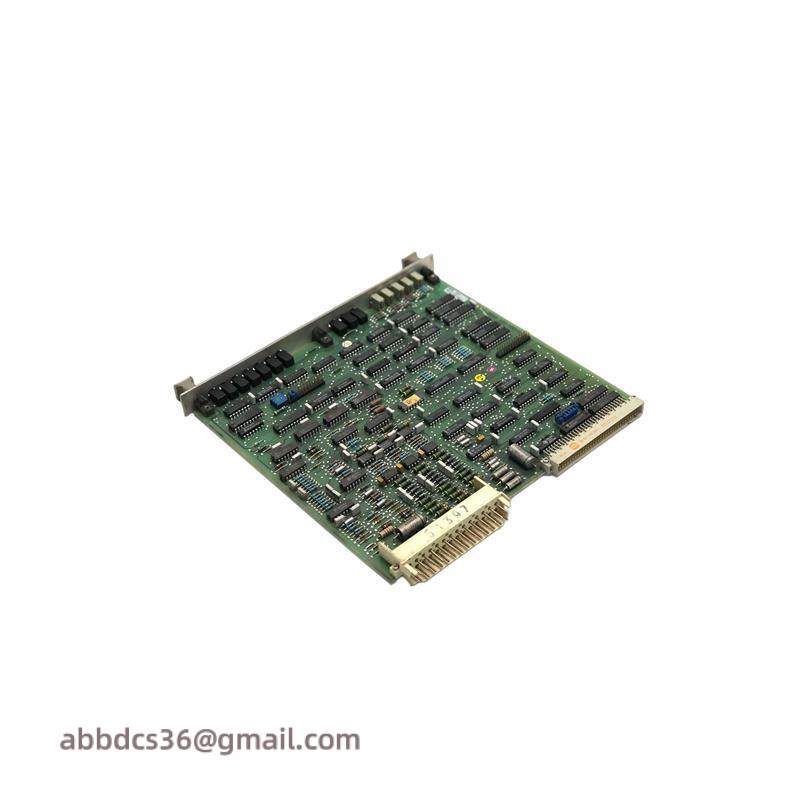

ABB DSQC104 Resolver Board - Advanced Industrial Control Module

ABB DSQC104 Resolver Board – Advanced Industrial Control Module

In stock

The ABB DSQC104 Resolver Board is a precision component designed for advanced industrial control systems, ensuring accurate angular measurement and feedback for high-performance machinery.

Product Type:Resolver Board

Brand:ABB

Model:DSQC104

Series:Industrial Automation

Resolution:1024 ticks per revolution

Accuracy:+/- 0.05% of reading + 1 tick

Input Voltage Range:DC 9…36V

Output Signal:2-wire, 4-20mA current loop

Operating Temperature:-25°C to +60°C

Humidity Range:0% to 95% non-condensing

Introducing the ABB DSQC104 Resolver Board, a critical component for enhancing the accuracy and reliability of industrial automation systems. This resolver board is engineered to provide unparalleled precision in angular measurement, essential for the smooth operation of complex machinery and equipment.

Featuring a compact yet robust design, the DSQC104 is compatible with a wide range of ABB and third-party controllers, making it a versatile choice for integration into existing or new control systems.

With its ability to operate within extreme temperature conditions (-20°C to +70°C) and support for DC 24V input voltage, the DSQC104 ensures dependable performance across various industrial environments.

Equipped with an RS-232 communication interface, this resolver board facilitates seamless data exchange between the controller and other system components, optimizing efficiency and reducing downtime.

Crafted from high-quality materials, the DSQC104 Resolver Board is built to withstand harsh industrial conditions, guaranteeing longevity and minimal maintenance requirements.
