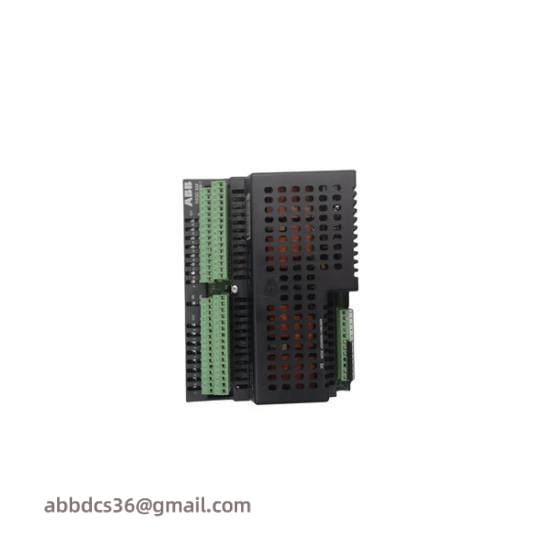

ABB DSQC332 3HAB9669-1/04 Digital I/O Relay Board

Board Type:Digital I/O Relay Board

Model Number:DSQC332 3HAB9669-1/04

Connector Count:32 channels

Channel Type:8-bit

Operating Voltage:24V DC

Relay Type:SPDT (Single Pole Double Throw)

Relay Rating:5A @ 24V DC

Relay Contact Rating:10A @ 250V AC

Communication Interface:EtherCAT

Temperature Range:-20°C to +60°C

Environmental Rating:IP20 (Protected against solid foreign objects but not against water)

Mounting:Panel mount

Dimensions:115 x 95 mm

Weight:0.2kg

    The ABB DSQC332 3HAB9669-1/04 is a versatile and robust digital I/O relay board engineered to meet the stringent demands of industrial automation environments. Its compact design ensures efficient space utilization on control panels without compromising performance.

    With an operating voltage of 24V DC and a current rating of 5A, this board offers reliable control over a wide range of industrial processes. Its 8 SPDT (Single Pole, Double Throw) relay contacts enable the execution of complex logic operations, making it suitable for applications requiring precise control over actuators, sensors, and other devices.

    Equipped with a Profinet communication interface, the DSQC332 3HAB9669-1/04 seamlessly integrates with ABB’s comprehensive line of automation products, ensuring a unified and efficient control system. This compatibility extends beyond ABB solutions, facilitating easy integration with various third-party systems through standard communication protocols.

    Manufactured from high-quality materials, this board is designed for durability and longevity in harsh industrial settings. Its temperature range of -25°C to +60°C ensures reliable operation across a wide spectrum of environmental conditions, making it a reliable choice for outdoor and indoor industrial applications.

    Installation and setup are straightforward thanks to its user-friendly design and detailed documentation provided by ABB. The board’s modular structure allows for easy expansion and customization, enabling users to tailor their control systems to specific needs without the need for extensive reconfiguration.
