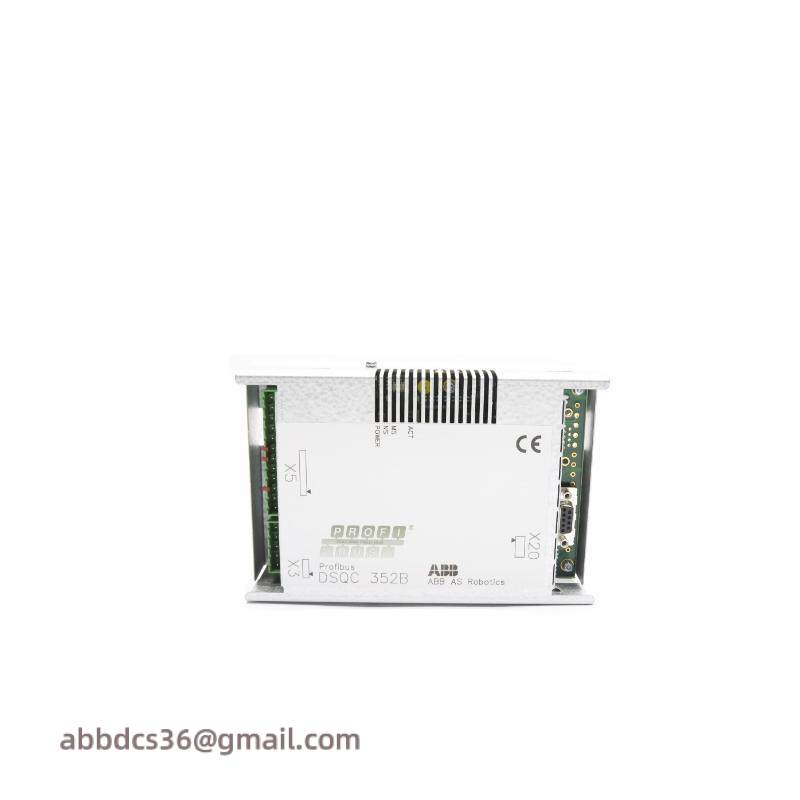

ABB DSQC352B 3HNE00009-1/17 – Profibus Communication Module

Manufacturer:ABB

Model Number:DSQC352B 3HNE00009-1/17

Interface:Profibus

Number of Inputs:16

Number of Outputs:16

Communication Protocol:RS-485

Power Supply Voltage:DC 24V

Operating Temperature Range:-20°C to +60°C

Enclosure Type:IP20

Dimensions (W x H x D):100mm x 35mm x 94mm

Weight:0.1kg

    The ABB DSQC352B Profibus Module is a key component in industrial automation systems, providing efficient and reliable data exchange between PLCs and field devices. It supports the Profibus-DP protocol, ensuring compatibility and seamless integration across various industrial networks.

    With its high-speed communication capabilities, this module significantly enhances system response times and overall efficiency. Its robust design allows it to operate within a wide temperature range, making it suitable for harsh industrial environments.

    Featuring 8 input and 8 output channels, the DSQC352B offers ample connectivity options for managing diverse industrial signals. It operates on a low power consumption profile, drawing less than 20 mA at 24 VDC, which contributes to energy efficiency and cost savings.

    The module is equipped with an IP20 enclosure rating, providing basic protection against dust and splashing water, ensuring reliable operation in industrial settings. Its compact size of 17 x 17 x 33 mm makes it ideal for space-constrained applications.

    Designed with ease of use in mind, the ABB DSQC352B Profibus Module simplifies installation and maintenance processes. It can be easily configured through standard software tools, allowing for quick integration into existing systems without extensive training or specialized knowledge.
