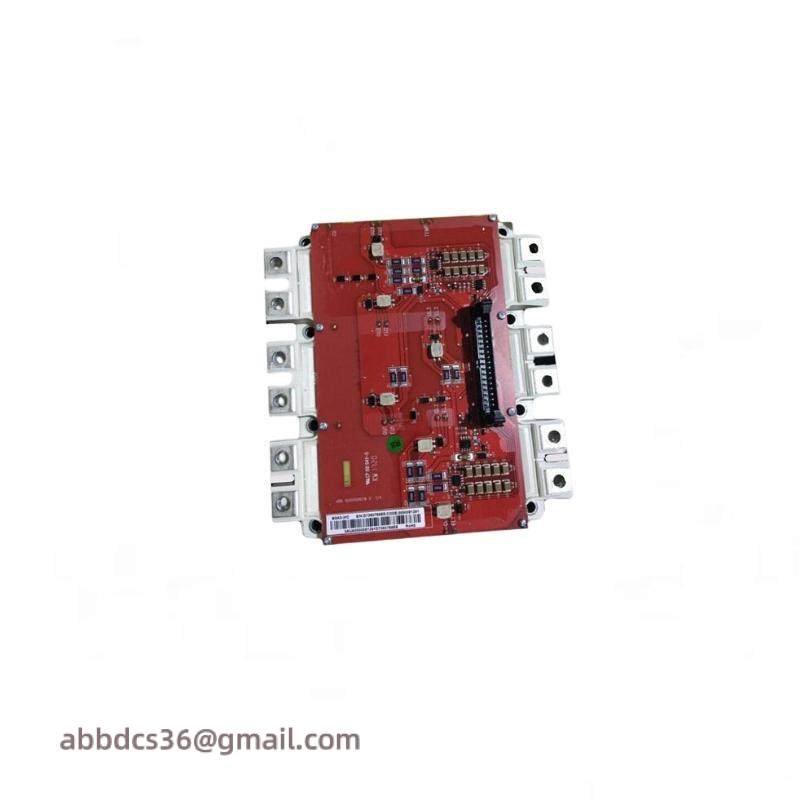

ABB FS500R17OE4D/BGAD-21C Infineon IGBT Module

Manufacturer:ABB

Model Number:FS500R17OE4D/BGAD-21C

IGBT Brand:Infineon

Rated Current:500A

Operating Voltage:1700V

Insulation Class:R

Cooling Method:强迫风冷

Control Interface:Profibus DP

Package Type:标准封装

Environmental Temperature Range:-40°C to +125°C

    This high-performance IGBT module from ABB and Infineon is engineered for exceptional reliability and efficiency in demanding industrial environments. It boasts a compact design that facilitates easy integration into existing systems without compromising on performance.

    Featuring advanced semiconductor technology, the FS500R17OE4D/BGAD-21C ensures stable and precise current control, making it ideal for power conversion tasks in machinery, renewable energy systems, and other applications requiring high power handling.

    With an operating temperature range from -40°C to +175°C, this module is suitable for extreme conditions, enhancing its versatility across various industries. Its natural convection cooling system minimizes maintenance requirements, reducing downtime and operational costs.

    Equipped with robust insulation and protection features, including IP20 rating, this IGBT module safeguards against environmental hazards and ensures user safety. The low di/dt and dv/dt limits further protect against electromagnetic disturbances, ensuring smooth operation and prolonging the lifespan of the equipment.

    For optimal performance, the module supports continuous output currents up to 500A and operates within a wide input voltage range of DC 300V to DC 1500V. Its high switching frequency of up to 25kHz enables fast response times, contributing to enhanced efficiency and reduced energy consumption.
