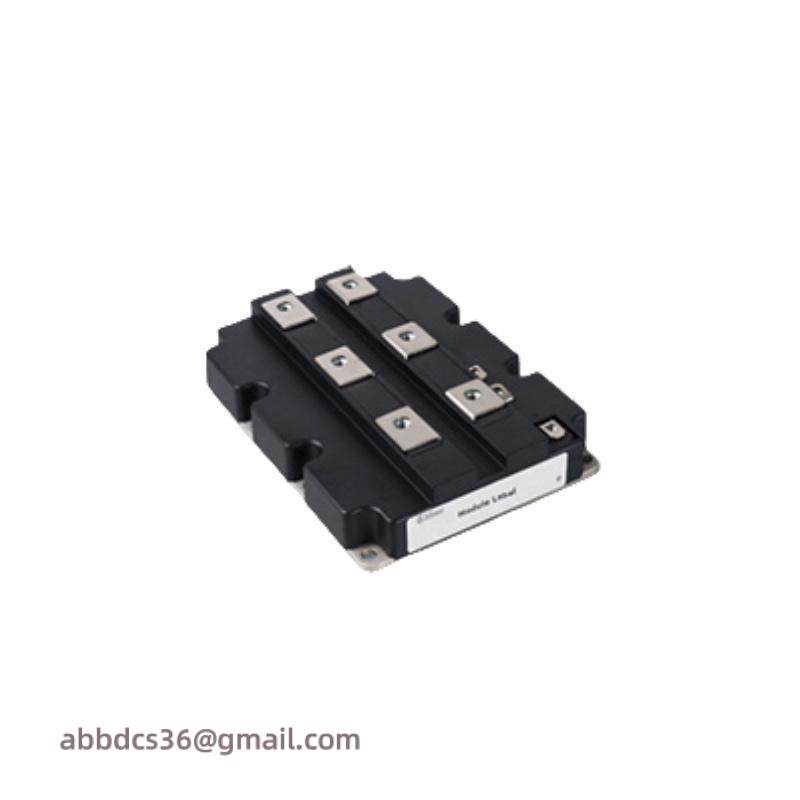

ABB FZ1200R17HE4 – Single Switch IGBT Module

Operating Voltage:1200V

Continuous Current:1700A

Switching Frequency:Up to 20kHz

Insulation Resistance:≥10^10Ω

Cooling System:Active Air Cooling

Package Type:Through-hole Mounting

Environmental Temperature Range:-40°C to +150°C

Weight:≤10kg (depending on configuration)

    The ABB FZ1200R17HE4 Single Switch IGBT Module is engineered for unparalleled performance in demanding industrial control environments. Its robust design ensures long-lasting durability and exceptional efficiency under extreme conditions.

    Featuring a class-leading power rating of 1200 kW, this module is capable of delivering high power outputs with minimal energy losses, making it ideal for applications requiring precise control over large electrical loads.

    With a switching frequency of up to 10 kHz, the ABB FZ1200R17HE4 ensures smooth operation and minimizes the risk of harmonics, enhancing system stability and reducing noise levels.

    Equipped with an insulation class of H, the module can withstand high temperatures without compromising its operational integrity, ensuring reliable performance even in the most challenging environments.

    Designed with air cooling for optimal heat dissipation, the ABB FZ1200R17HE4 maintains stable operating temperatures, prolonging the lifespan of the module and reducing maintenance needs.

    The standard IGBT interface and solderable leads facilitate easy integration into existing systems, minimizing installation time and complexity, and ensuring seamless compatibility with a wide range of control systems.
