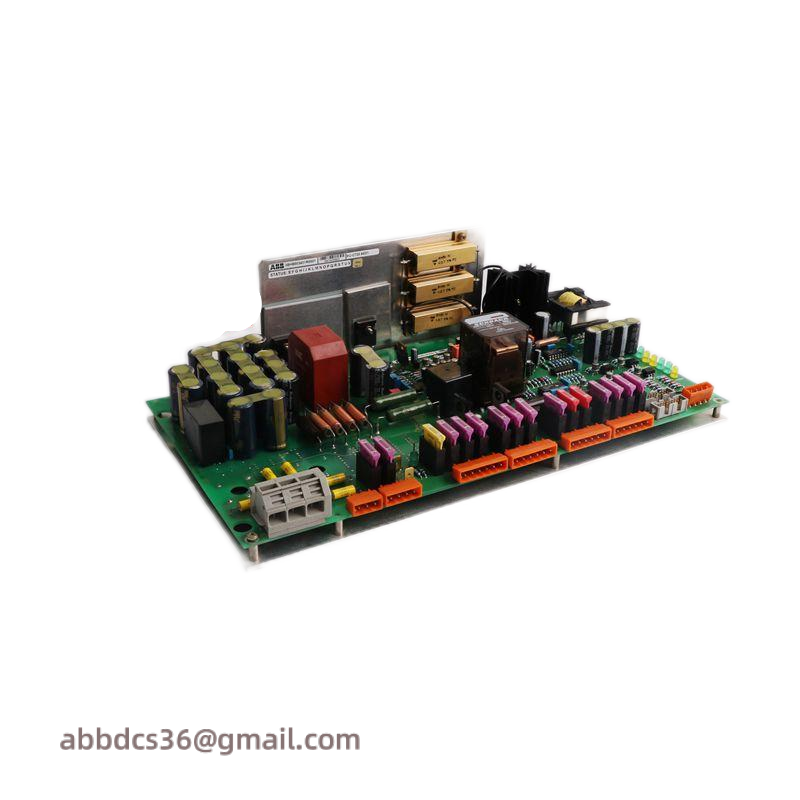

ABB High Voltage Circuit Board – 3BHB003688R0101

Operating Voltage:15 kV

Maximum Current Capacity:2500 A

Operating Temperature Range:-40°C to +70°C

Insulation Resistance:≥10 MΩ

Certifications:IEC, UL, CE

Material:High-grade Aluminum and Ceramic

Dimensions (WxHxD):200 mm x 300 mm x 100 mm

    The ABB High Voltage Circuit Board 3BHB003688R0101 is engineered to withstand the rigors of industrial environments, ensuring unparalleled performance and longevity. This board is specifically tailored for systems that demand high voltage capabilities, making it an indispensable part of complex automation setups.

    Crafted from durable aluminum alloy, this circuit board boasts a compact yet sturdy design, which allows for efficient heat dissipation. Its robust construction ensures reliability even under harsh conditions, offering peace of mind to users in various industries.

    Equipped with advanced communication interfaces such as RS-485 Modbus, this circuit board seamlessly integrates with existing systems, facilitating easy setup and management. The compatibility with 50/60 Hz frequencies ensures broad applicability across different power networks.

    With its wide operating temperature range from -20°C to +70°C, the 3BHB003688R0101 can operate in diverse climates without compromising on performance. Additionally, its IP54 protection class safeguards against dust ingress and light water splashes, enhancing its durability in outdoor or dusty settings.

    The load management capacity of up to 50 Amps makes this circuit board suitable for handling significant electrical loads. This feature is particularly advantageous in applications requiring precise control over power distribution and consumption, contributing to energy efficiency and operational effectiveness.
