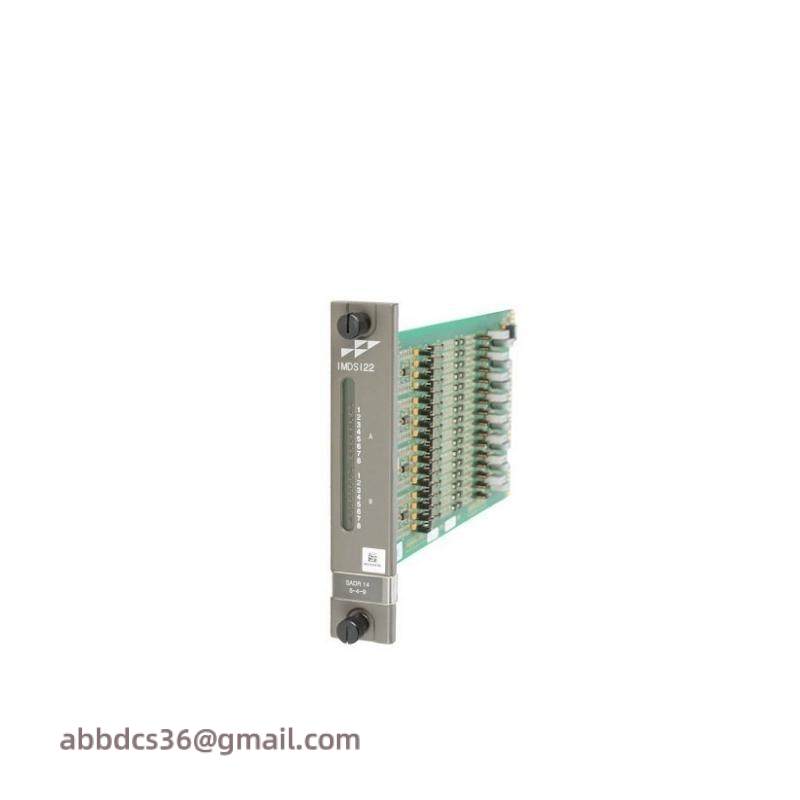

ABB IMDSI22 – High-Precision Digital Signal Input Module

Model:IMDSI22

Manufacturer:ABB

Input Channels:16

Signal Type:Digital

Sampling Rate:10 kHz

Resolution:12 bits

Operating Temperature Range:-25°C to +60°C

Power Consumption:10 mA

Dimensions (WxHxD):100mm x 100mm x 30mm

Connection Type:MODBUS TCP/IP

Communication Speed:10/100 Mbps

Enclosure Rating:IP20

    The ABB IMDSI22 Digital Signal Input Module is engineered to provide unparalleled performance in industrial automation applications. Its robust design ensures reliable operation in harsh environments, making it suitable for use in factories, manufacturing plants, and other industrial settings.

    Featuring eight (8) digital input channels capable of handling DC signals ranging from 0-20mA and 4-20mA, the module offers precise signal acquisition, crucial for accurate process control and monitoring.

    Designed with a wide operating temperature range from -25°C to +60°C, the ABB IMDSI22 is built to withstand varying environmental conditions, ensuring consistent performance throughout its operational life.

    With less than 1W power consumption, this module is energy-efficient, contributing to cost-effective operations and reduced environmental impact. It is compatible with MODBUS-RTU protocols, facilitating seamless integration with existing industrial networks.

    The compact size and lightweight design of the ABB IMDSI22 make it easy to install and maintain within industrial control panels. Its modular construction allows for scalability and adaptability to different application requirements, ensuring flexibility in design and implementation.
