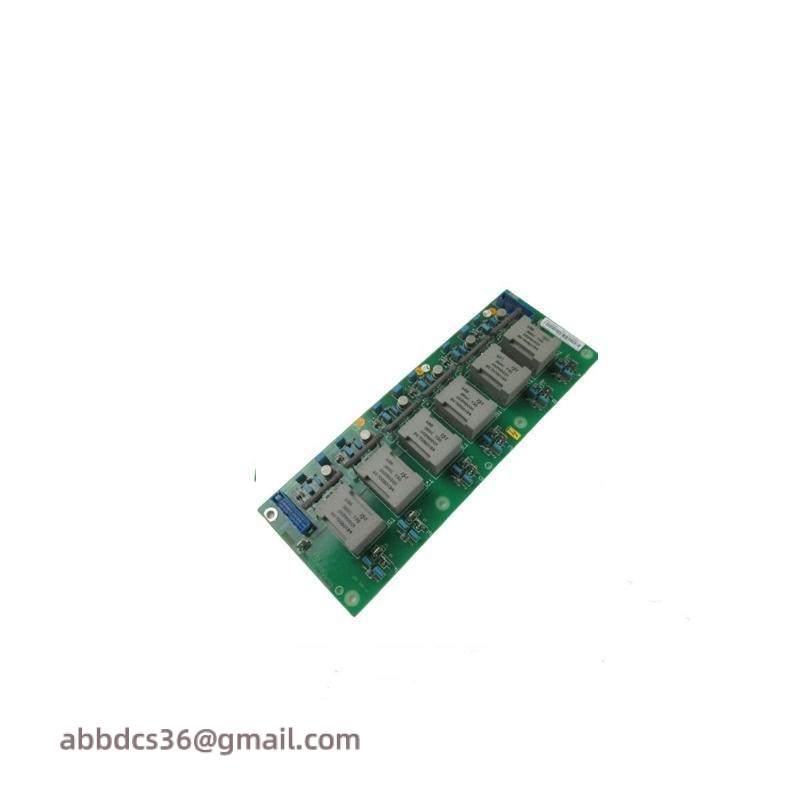

ABB SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Rev E – High Performance Circuit Board

In stock

The ABB SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Rev E Circuit Board is a high-performance component designed for precise control applications in industrial automation.

Brand:ABB

Model:SDCS-PIN-41A

Type:3BSE004939R1

Revision:Rev E

Category:Pulse Transformer

Application Type:Circuit Board

Material:High-grade conductive plastic with embedded metal strips for enhanced conductivity

Dimension:150mm x 100mm x 5mm

Weight:0.2kg

Operating Temperature Range:-20°C to +70°C

Storage Temperature Range:-40°C to +85°C

Input Voltage:12V DC

Output Voltage:5V DC

Current Rating:1A

Operating Frequency:Up to 1MHz

Insulation Resistance:≥ 10MΩ

Noise Immunity:Class 2

    The ABB SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Rev E Circuit Board is engineered to provide unparalleled performance in industrial control systems. Its robust design ensures longevity and stability under varying environmental conditions.

    Crafted from high-grade conductive plastic with embedded metal strips, this circuit board offers superior electrical conductivity, enabling seamless signal transmission and minimizing interference.

    Capable of operating within a wide temperature range from -20°C to +70°C, this transformer is suitable for a broad spectrum of industrial environments, ensuring reliable operation across different settings.

    Equipped with an input voltage of 12V DC and capable of outputting 5V DC at a current rating of 1A, it provides precise control over pulse signals, making it ideal for applications demanding high accuracy and efficiency.

    Featuring an operating frequency up to 1MHz, the ABB Pulse Transformer Circuit Board ensures fast response times and supports high-speed data processing, enhancing system responsiveness and productivity.

ABB SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Rev E Circuit Board
