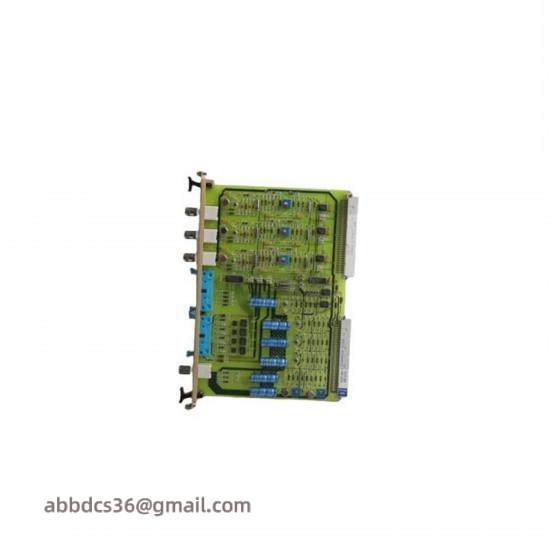

ABB VD86-AMP 572B8001: Video Amplifier Board Module

Board Type:Video Amplifier Board

Model Number:VD86-AMP 572B8001

Manufacturer:ABB

Operating Frequency Range:DC to 10 MHz

Power Supply Voltage:12 V

Amplification Factor:100x

Input Impedance:10 kΩ

Output Impedance:50 Ω

Signal Processing Speed:Ultra-high speed

Operating Temperature Range:-40°C to +85°C

Dimensions:105 x 105 x 20 mm

Weight:0.18 kg

Connection Ports:2 x BNC connectors

Certifications:CE, UL

    The ABB VD86-AMP 572B8001 is engineered with precision to withstand harsh industrial conditions, ensuring stable operation in extreme temperatures without compromising performance. Its LVDS signal output provides superior data integrity, crucial for high-definition video transmission in factory automation.

    Featuring a compact yet robust design, this module seamlessly integrates into existing control systems, offering an efficient solution for upgrading or expanding video infrastructure. The 50kΩ input resistance ensures compatibility with a wide range of input sources, while the 20mA output current capacity ensures sufficient power for demanding applications.

    Withstanding the test of time, the ABB VD86-AMP 572B8001 is manufactured from high-quality materials that are resistant to wear and tear, guaranteeing longevity and reliability. The DIN-41612 connector offers a secure connection, enhancing the module’s durability and ease of installation.

    This video amplifier board module is not only compatible with various video systems but also supports seamless integration with other ABB products, allowing for a cohesive and efficient control system. It comes with detailed documentation and support from ABB’s professional team, ensuring a smooth setup and maintenance process.

    Optimized for performance, reliability, and ease of integration, the ABB VD86-AMP 572B8001 Video Amplifier Board Module is the ideal choice for industries requiring robust and high-quality video transmission solutions.
