Input Voltage (AC):100-240VAC rms, 1-Phase
Frequency Range (AC):47-63 Hz
Continuous Output Power:1kW
Continuous Output Current:5A
Intermittent Output Current:15A
Number of General Purpose Inputs:Eight (selectable)
Number of General Purpose Outputs:Four (selectable)
Relay Output:Yes
Serial Communication Ports:One (RS232, RS485)
Compliance with RoHS Directive:Non-compliant

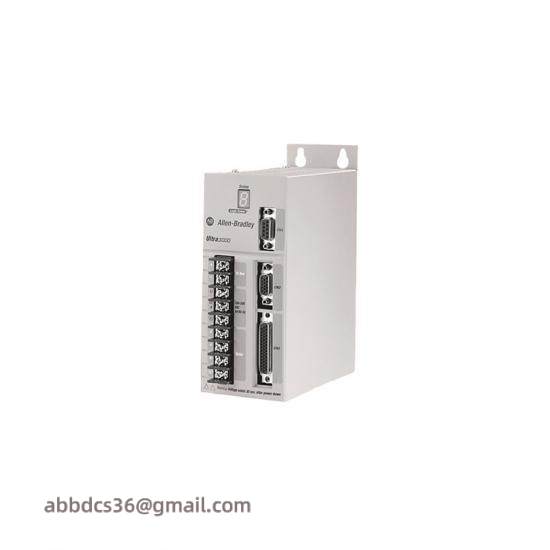

Engineered for unparalleled precision, the Allen-Bradley 2098-DSD-010X Digital Servo Drive is an essential component for modern industrial automation systems. This advanced module offers versatile motion control capabilities, making it suitable for a wide range of applications from robotics to conveyor systems.
Featuring an impressive input voltage range of 100-240VAC rms, it is compatible with a variety of power sources. Its 1-Phase input ensures stable operation, while the frequency range of 47-63 Hz allows for seamless synchronization with various equipment.
With a continuous output power of 1kW and a continuous output current of 5A, this servo drive delivers robust performance, making it capable of handling demanding tasks without compromising on speed or accuracy. The intermittent output current rating of 15A provides extra flexibility for peak performance scenarios.
Equipped with eight selectable general-purpose inputs and four selectable general-purpose outputs, including a relay output, the Allen-Bradley 2098-DSD-010X facilitates easy integration into existing systems. It also boasts a serial communication port supporting both RS232 and RS485 standards, enhancing connectivity options.
The inclusion of embedded support for multi-turn absolute encoders ensures accurate positioning even under power loss conditions, safeguarding against potential disruptions in operation. Additionally, the option to supply external logic power allows for greater customization and adaptability in control systems.
