Programming Languages:Ladder Logic, Structured Text
Instructions Set:[“File Handling”,”Sequencer”,”Diagnostic”,”Shift Register”,”Immediate I/O”,”Program Control”]
Main Control Programs:Separate control tasks
Processor Input Interrupts:Immediate system responses
Global Status Flags:Monitoring system health
Fault Response:Prevent system failure
Timed Interrupt Routine:Specific information checks
Protected Memory:Word selection on processors
Maximum Forced Inputs:512-3072

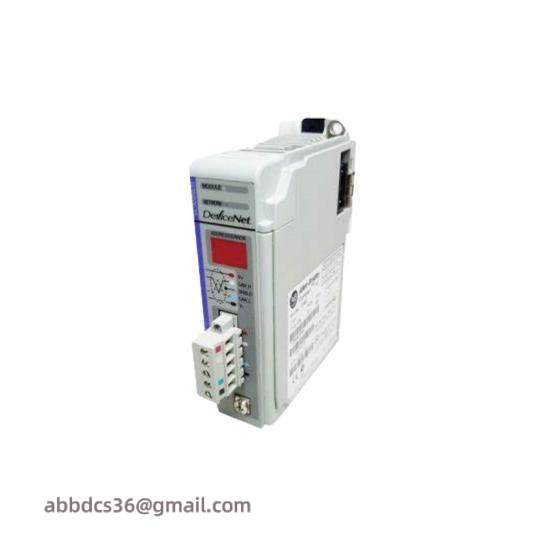

The Allen-Bradley 1769-SDN scan module is engineered to meet the stringent demands of industrial automation environments. Its advanced feature set, including support for ladder logic and structured text programming, ensures flexible and efficient control system design.
With multiple main control programs, users can segregate control tasks, enhancing system performance and reliability. The processor input interrupts and global status flags allow for real-time monitoring and quick response to system conditions.
The programmable fault response feature empowers users to define custom actions for faults, preventing system downtime. Additionally, the timed interrupt routine facilitates the examination of critical data at specific intervals, optimizing system operation.
The 1769-SDN is equipped with protected memory that can be selectively activated on certain processors, ensuring data integrity and system stability even under challenging electrical conditions.
For enhanced communication, this scan module supports Ethernet technology, providing robust connectivity and compatibility with a wide range of third-party devices. This feature, combined with the option for redundant IP addresses, enables flexible and reliable network configurations.
