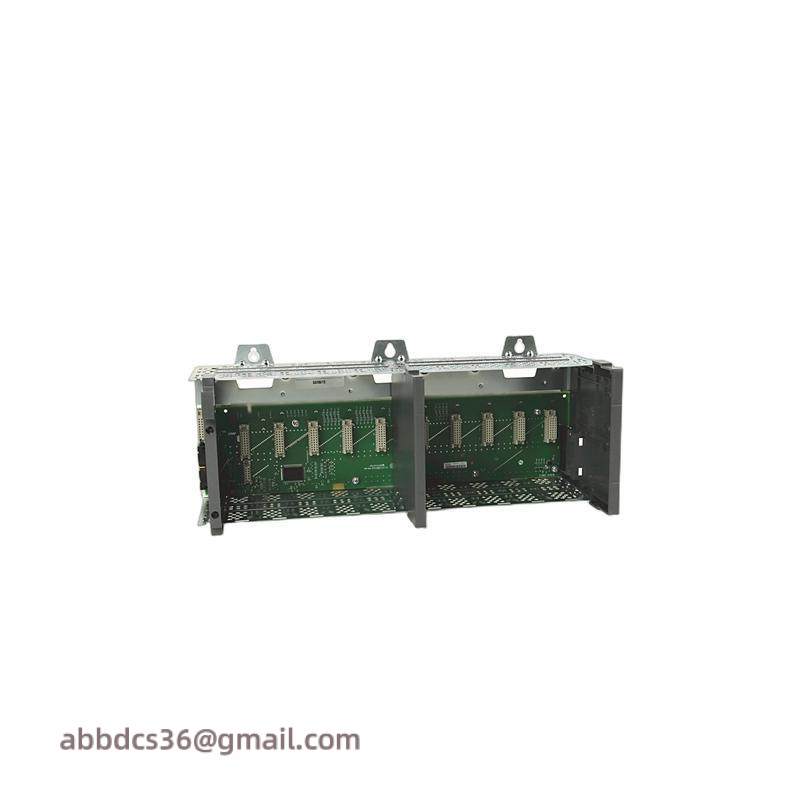

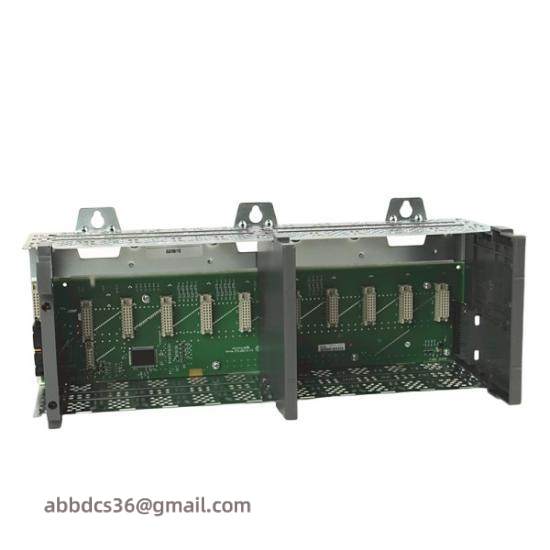

Allen-Bradley 1746-A10 SLC500 Chassis

Model Type:SLC500

Model Number:1746-A10

Manufacturer:Allen Bradley

I/O Chassis:SLC Series

Capacity:10 Slot

Mounting:Panel

Temperature Rating:0 – 60 DEG C

Enclosure:Open Type

Form Factor:Slot Type Chassis

Cooling:Convection

Dimensions:Length: 5.8 IN, Width: 15.9 IN, Height: 6.8 IN

Maximum Backplane Current:5.1 VDC At 10 A, 24 VDC A 2.88 A

Weight:3.2 LB Without Modules

Power Consumption:1.8 W

Power Dissipation:6.1 BTU/HR

Standards:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

    The Allen-Bradley 1746-A10 is a high-performance I/O chassis designed specifically for the SLC500 series of controllers. It offers a robust and reliable solution for industrial automation systems, ensuring consistent performance in harsh environments. This model features a 10-slot capacity, allowing for flexible configuration and expansion. With its open-type enclosure and panel-mount design, it can easily integrate into existing control systems. The 1746-A10 supports convection cooling, ensuring efficient heat dissipation and longevity. Its compact dimensions (5.8 inches length, 15.9 inches width, and 6.8 inches height) make it ideal for space-constrained installations. The maximum backplane current of 5.1 VDC at 10 A and 24 VDC at 2.88 A ensures stable power distribution across modules. Certified to international standards such as GOST_R, KCC, and multiple marine certifications, this I/O chassis is suitable for use in diverse applications, including marine environments.
