Resolution:High
Channels:4
Common Mode Voltage Range:-20 to 20V
Absolute Input Voltage:±7.5VDC or ±7.5VAC RMS
Input Range:-20 to 20MA
Absolute Input Current:-30 to 30MA
Voltage Rating:Overvoltage Protection: 7.5VAC RMS
Input Range (DC):-10 to 10VDC – 1 LSB
Current Rating:Backplane Current Draw: 35MA at 5V, 85MA at 24V
Isolation:Backplane: 500VDC
Enclosure Type:Open Type

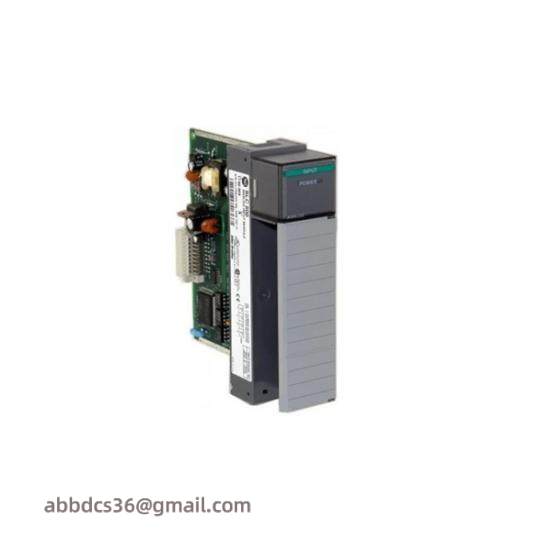

Experience unparalleled precision with the Allen Bradley 1746-NI4B Analog Input Module, designed to enhance the efficiency and reliability of your industrial automation systems. This high-resolution module supports up to four channels, providing accurate readings essential for critical system monitoring.
The module boasts an extensive input voltage range from -20 to +20 VDC, ensuring compatibility with a wide array of industrial setups. Its ability to handle currents from -30 to +30 mA ensures robust performance under varying conditions.
Featuring overvoltage protection of 7.5 VAC RMS, the 1746-NI4B is engineered to withstand unexpected electrical fluctuations, safeguarding your system from potential damage. Its voltage rating exceeds 10 VDC, guaranteeing durability and longevity.
With isolation capabilities of 500 VDC backplane and open type enclosure, this module offers superior protection against electrical interference, ensuring stable operation in even the most challenging environments.
Effortlessly integrate the Allen Bradley 1746-NI4B Analog Input Module into your existing setup with its versatile current ratings, enabling seamless connectivity at either 5 V or 24 V. This makes it an ideal choice for a wide range of applications, from manufacturing lines to complex industrial systems.
