Product Type:Analog Input Module
Manufacturer:Allen-Bradley
Model Number:1746-NL8
Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS
Input Range:-20 To 20 MA
Absolute Input Current:-30 To 30 MA (Max)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (DC):-10 To 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

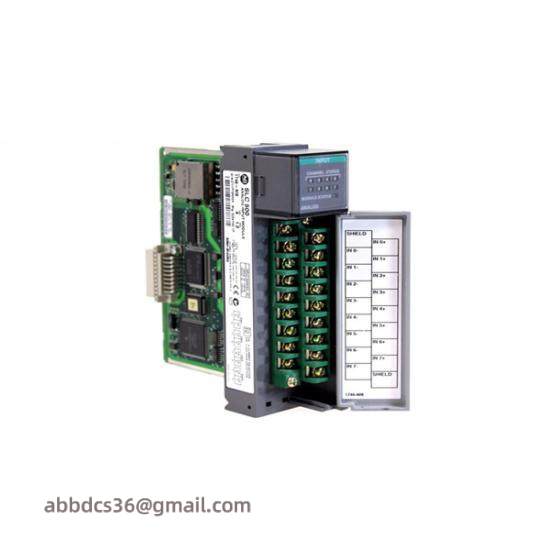

The Allen Bradley 1746-NL8 Analog Input Module is engineered to provide unparalleled accuracy and reliability in industrial applications. With its 8-channel design, this module is capable of handling a wide range of input signals, making it an ideal choice for complex control systems.
Featuring high-resolution inputs, this module ensures precise data acquisition, essential for maintaining optimal performance in various manufacturing processes. Its robust design withstands harsh industrial environments, ensuring long-term dependability.
Easy integration with Allen-Bradley PLC systems simplifies installation and setup, while its compact size allows for efficient use of space on the control panel. The 1746-NL8 is equipped with advanced isolation technology, enhancing its ability to prevent signal interference and protect against electrical hazards.
Ideal for applications requiring precise analog signal conversion, such as temperature monitoring, pressure measurement, and flow control, this module supports a broad spectrum of industrial needs. Its compatibility with industry-standard protocols ensures seamless communication within existing automation networks.
Designed with user-friendliness in mind, the Allen Bradley 1746-NL8 Analog Input Module comes with comprehensive documentation and support, facilitating quick adoption and minimizing downtime during integration.
