Model Type:Digital Output Module
Manufacturer:Allen Bradley
Product ID:AB 1746SC-NO8I
Number of Channels:8
Output Range:0 – 20 mA
Operating Voltage:24 VDC ±10%
Minimum Output Current:300 mA
Current Output Ranges:4 – 20 mA, 0 – 20 mA
Current Rating:Backplane: 120 mA at 5 VDC, 250 mA at 24 VDC (J4 jumper set to rack), 0 mA at 24 VDC (J4 jumper set to EXT)
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis

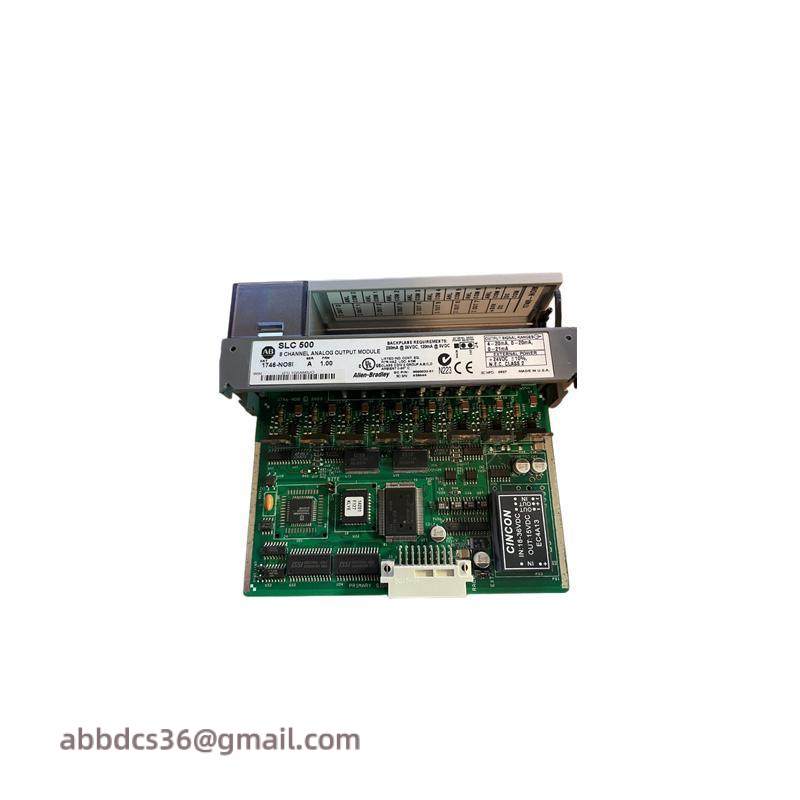

The AB 1746SC-NO8I Output Module is engineered for seamless integration into industrial automation systems, offering unparalleled performance and reliability. With its versatile 8-channel design, it enables precise control over processes requiring analog current output, making it ideal for applications in manufacturing, process control, and other industries.
This output module supports a wide range of current output values from 0 to 21.5 milliamps, ensuring compatibility with a variety of sensors and actuators. The adjustable output range allows users to configure the module according to their specific needs, optimizing efficiency and accuracy in their operations.
Featuring robust isolation and a user-friendly status LED display, the AB 1746SC-NO8I ensures reliable operation and easy monitoring. The open-type enclosure provides protection against dust and minor impacts, enhancing the durability of the module in harsh industrial environments.
Compliant with industry standards, this module is designed for easy installation on the backplane or external mounting, depending on your system configuration. It seamlessly connects to other components via 24-14 AWG cables, facilitating straightforward setup and maintenance.
For those seeking a reliable and efficient solution for their analog output requirements, the AB 1746SC-NO8I Output Module offers an unmatched combination of performance, flexibility, and ease of use, setting new benchmarks in industrial automation.
