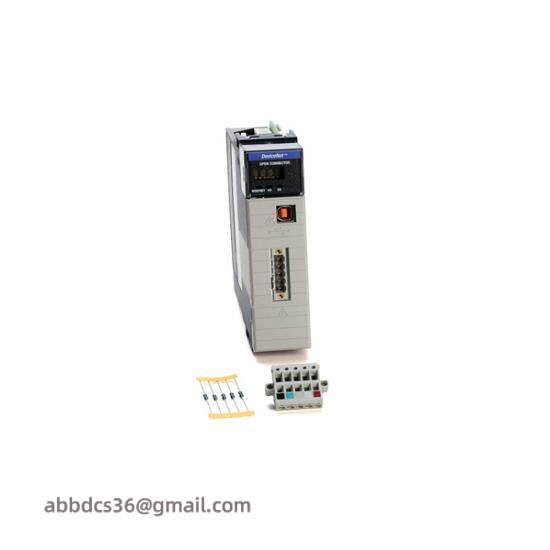

Allen Bradley 1756-DNB ControlLogix DeviceNet Communication Module – High Performance Networking Solution

Model Type:Bridge Module

Model Number:1756-DNB

Manufacturer:Allen Bradley

Communication Protocol:DeviceNet

Amperage Rating:Drawn: 400 MA at 5.1 V

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

RFI Suppression:Radiated: 10 V/M with 1 KHZ sine-wave 80% AM from 80 – 2000 MHZ

Enclosure:Open Type

Connection:Compliant shielded or unshielded twisted pair cables

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

    The AB 1756-DNB ControlLogix DeviceNet Communication Module is a robust, high-performance device designed to meet the demands of advanced industrial automation systems. This module is engineered to provide reliable DeviceNet communication, ensuring seamless data exchange between ControlLogix controllers and other compatible devices.

    With its extensive support for Common Industrial Protocol (CIP), the 1756-DNB facilitates efficient real-time communication, enabling dynamic process control and optimization. The inclusion of two ports allows for flexible network configurations, supporting up to eight motion axes, 128 TCP/IP connections, and 256 CIP connections, making it suitable for complex industrial environments.

    Featuring a durable RJ45 copper connection type, the module ensures robust data transmission capabilities. The 5-character alpha/numeric display offers quick access to critical information, while the specified power supply requirements ensure stable operation under various conditions.

    Although not explicitly detailed, the 1756-DNB is part of the renowned Allen-Bradley product line, known for its reliability and compatibility with the broader ControlLogix ecosystem. Its versatile design and advanced communication capabilities make it an ideal choice for modern industrial automation projects seeking enhanced connectivity and performance.

    For detailed specifications and compatibility details, we recommend reviewing the official Allen-Bradley documentation or contacting our technical support team. Our experts can provide guidance tailored to your specific project requirements, ensuring optimal integration and performance.
