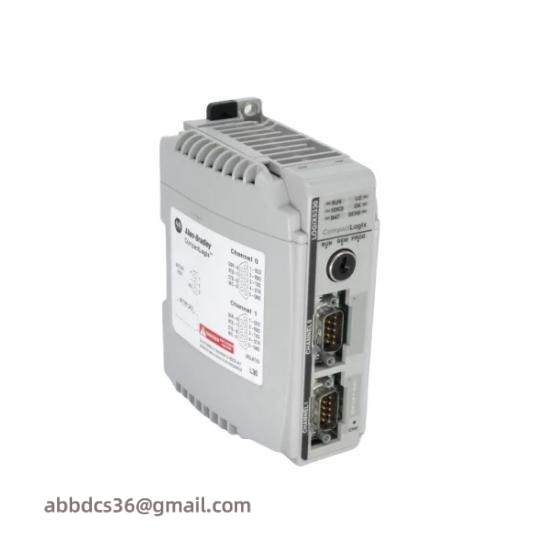

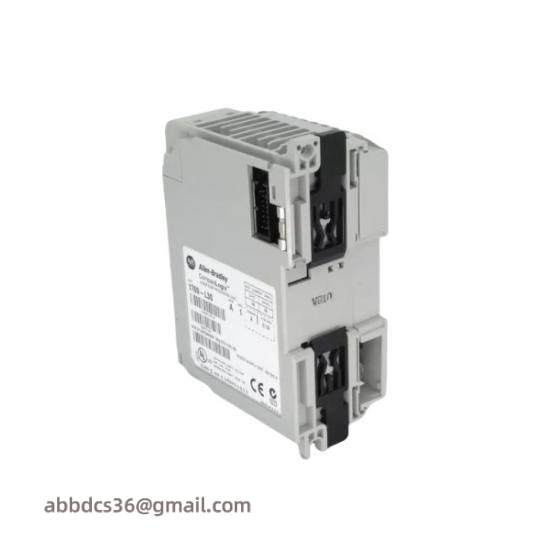

Allen-Bradley 1769-L30 Processor Module: Industrial Automation Core Control

Processor Type:CompactLogix 5370 L3

Ethernet Capability:Dual Ethernet

Memory Size:1MB

USB Port:1 x Programming/Downloading

Ethernet Ports:2 x EtherNet/IP

I/O Expansion:8

I/O Nodes:16 Ethernet IP

Power Supply:24V DC

Backplane Compatibility:uses POINT I/O (1734)

    Integrating cutting-edge technology, the Allen-Bradley 1769-L30 Processor Module is a cornerstone in modern industrial automation, offering unparalleled reliability and performance. Its compact design makes it versatile for integration into a wide array of manufacturing environments.

    Equipped with dual Ethernet ports, this module ensures seamless connectivity to other devices on the network, facilitating real-time data exchange and control over complex operations. Its dual Ethernet capability supports EtherNet/IP, a standard protocol widely adopted in the industry for its efficiency and reliability.

    With a substantial 1MB memory capacity, the 1769-L30 processor can handle intricate programming tasks and large datasets without compromising speed or responsiveness. This makes it ideal for applications requiring extensive customization and data management.

    Featuring 16 digital input and output channels, the module provides direct control over mechanical and electronic systems. Each channel is powered by a stable 24V DC supply, ensuring consistent operation even under challenging conditions.

    The inclusion of an integrated USB programming port allows for convenient setup, configuration, and maintenance, minimizing downtime and enhancing operational efficiency. Additionally, the ability to expand the I/O capabilities through 8 additional points via POINT I/O backplane ensures flexibility and scalability to meet evolving needs.
