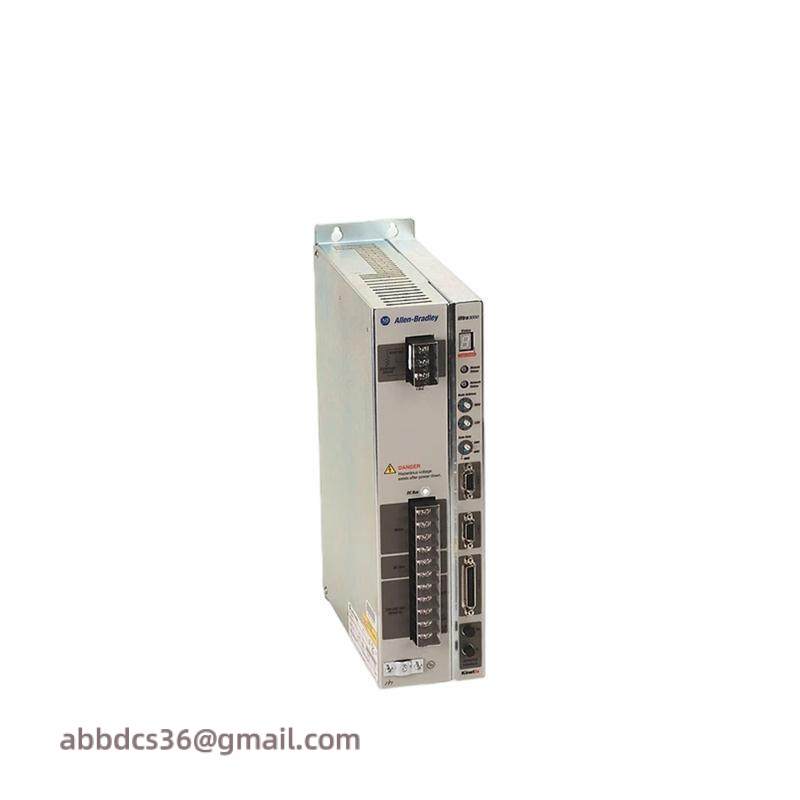

Allen-Bradley AB 2098-DSD-HV150-SE SERCOS Servo Drive

Voltage Supply:230-480V AC, 3-Phase

Input Frequency:47-63 Hz

Nominal Input Current:11 A (continuous), 22 A (intermittent)

Output Power:1.5 kW @ 230V AC, 3.0 kW @ 460V AC

Control Specifications:Space Vector Modulation (SVM), Digital PI Velocity Control, Digital PID Position Control

Shunt Resistance:40 Ohms

Weight:22.96 lbs

SERCOS Interface:Integrated for seamless integration with Allen-Bradley ControlLogix PAC and SOFTLogix controller platforms

Compatibility:Direct integration with Allen-Bradley Logix 5000 series controllers and interface modules

    The Allen-Bradley AB 2098-DSD-HV150-SE SERCOS Servo Drive boasts a compact yet robust design, specifically tailored for high-performance motion control tasks. It seamlessly integrates with the ControlLogix Programmable Automation Controller (PAC) platform, enabling users to achieve unparalleled control and efficiency in their automated systems.

    Engineered for reliability and versatility, this servo drive supports a wide range of operating conditions, making it suitable for various industrial applications. Its advanced features include support for multi-turn absolute encoders, facilitating precise positioning and feedback without the need for additional power supplies.

    With its compatibility with the Serial Real-Time Communication System (SERCOS) protocol, this drive ensures seamless communication and data exchange, enhancing the overall performance of the automation systems it’s integrated into. It’s designed to handle complex motion profiles, making it ideal for applications requiring intricate and dynamic movements.

    Featuring a dedicated slot for both RS232 and RS485 interfaces, along with DeviceNet support, the Allen-Bradley AB 2098-DSD-HV150-SE provides flexibility in connectivity options. This allows for easy integration with a wide array of control systems, further enhancing its utility in diverse industrial settings.

    Equipped with a high-quality internal shunt resistance of 40 Ohms, the servo drive ensures stable operation and efficient power management. Additionally, its auxiliary power supply feature enables the drive to support external logic operations, providing enhanced functionality and adaptability for various control scenarios.
