Model Type:Safety Controller
Processor Model Number:1756-L72S
Manufacturer:Allen-Bradley
GuardLogix Integrated Safety System:Yes
Memory:{“Main Memory”:”8 MB”,”Safety Memory”:”4 MB”,”I/O Memory”:”0.98 MB”}
Optional Non-Volatile Memory Storage:[{“Size”:”1 GB”,”Part Number”:”1756-SD1″},{“Size”:”2 GB”,”Part Number”:”1756-SD2″}]
Mounting:Chassis
Isolation:30 V (Continuous), Basic Insulation
USB Port:To Backplane
Electrical Testing:[{“Test Type”:”Type Tested At 500 VAC For 60 SEC”,”Condition”:”Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ”,”Frequency Response”:[{“Waveform”:”10 V/M With 200 Hz 50% Pulse 100% AM At 900 MHZ”,”Magnitude”:”10 V/M”}]}]
Enclosure:Open Type
RfI Suppression:[{“Radiated”:”10 V/M”,”Frequency Range”:”80 – 2000 MHZ”,”Modulation”:”80% AM”},{“Magnitude”:”10 V/M”,”Frequency”:”900 MHZ”,”Pulse Width”:”50%”,”Modulation”:”100% AM”}]
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Communication Protocols:[“Ethernet/IP Bridge”]
Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

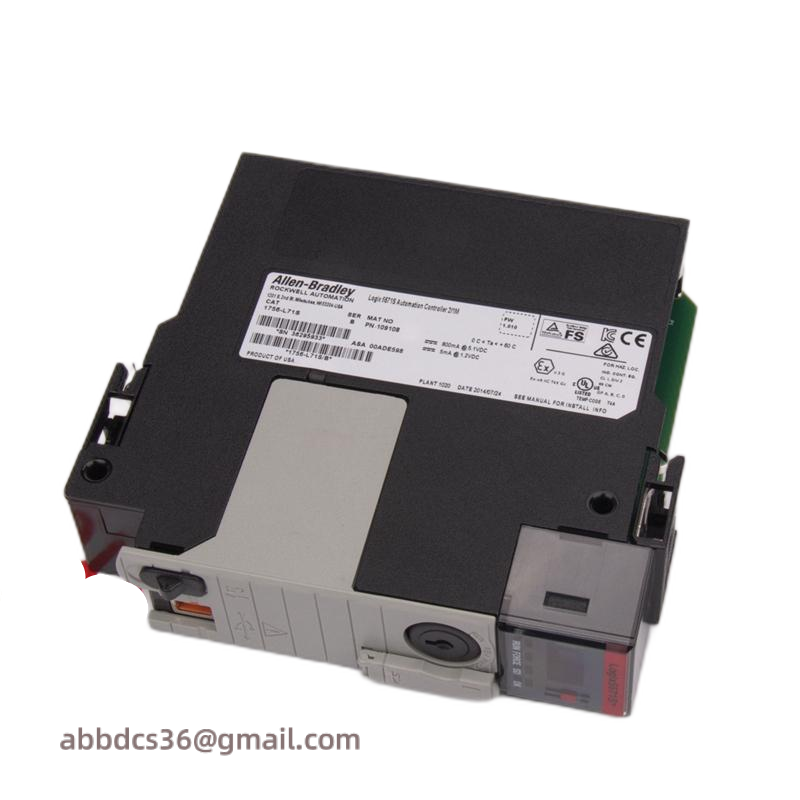

The Allen-Bradley 1756-L72S GuardLogix Logix5572S Processor offers unparalleled reliability and performance for demanding industrial environments. Designed with integrated safety systems, it ensures continuous operation while minimizing downtime.
With its robust memory configuration, the processor supports extensive data handling and management, making it suitable for complex automation tasks. The optional non-volatile memory storage allows for secure data retention even in power outages.
The advanced isolation technology ensures protection against external electrical disturbances, safeguarding the integrity of the system. This feature is critical in environments where electromagnetic interference is common.
Featuring an open type enclosure, the processor maintains high levels of air circulation, enhancing heat dissipation and system longevity. The integrated RfI suppression mechanisms further enhance the system’s resilience against environmental challenges.
The Ethernet/IP bridge enables seamless integration with various industrial networks, facilitating efficient communication between different components of the automation system. This capability is essential for achieving centralized control and monitoring.
Engineered for durability, the 1756-L72S can withstand harsh conditions without compromising performance. Its ability to operate within a wide temperature range ensures reliable operation across diverse industrial settings.
