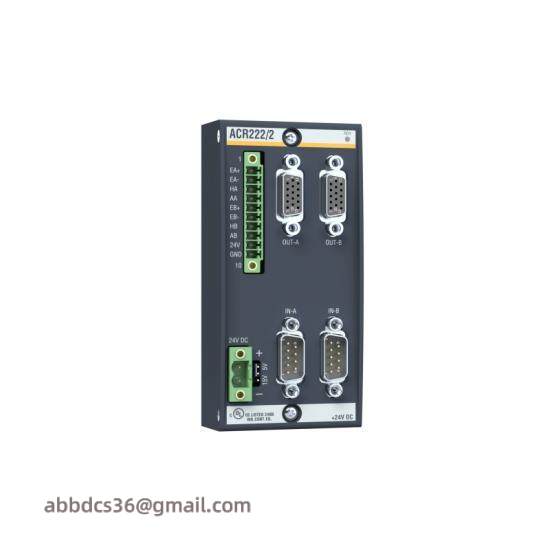

Bachmann ACR222/2 Axis Controller Module, Advanced Automation Solution

In stock

The BACHMANN ACR222/2 is an advanced industrial control module designed for precision control in heavy-duty applications. This compact yet powerful unit offers seamless integration and superior performance in various industrial settings.

Product Type:Axis Controller Module

Counter Resolution:24 bit

Inputs:HEDL (HP/AVAGO interface) / RS422 Encoder

Encoder Power Supply:+5 V or +15 V selectable with jumper

Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA

Voltage Range:18 to 34 VDC

Stepper Motor Control:2x Out 150kHz, 2x In INC, 1MHz, RS422

DI Connections:8x DI 24V

Acceleration Modes:Linear, sine², parabolic

Power Amplifier:Without power amplifier

Encoder Supply Voltage:5/15V

The BACHMANN ACR222/2 Axis Controller Module boasts an impressive 24-bit counter resolution, ensuring unparalleled accuracy in motion control applications.

With dual HEDL (HP / AVAGO interface) and RS422 Encoder inputs, this module seamlessly integrates with a wide range of encoder systems, enhancing compatibility and performance.

Offering a versatile power supply selection between +5 V and +15 V through a simple jumper, users can customize the module to meet their specific power requirements.

Capable of delivering low and high output voltages (0 to 2 V and 3 to 34 V respectively), the ACR222/2 ensures compatibility with a variety of stepper motors and other electrical components.

Equipped with a robust voltage range of 18 to 34 VDC, the module is designed to withstand challenging industrial environments, guaranteeing reliable operation under varying conditions.

The inclusion of acceleration modes such as linear, sine squared, and parabolic further enhances the control precision, making it suitable for complex motion profiles in manufacturing processes.
