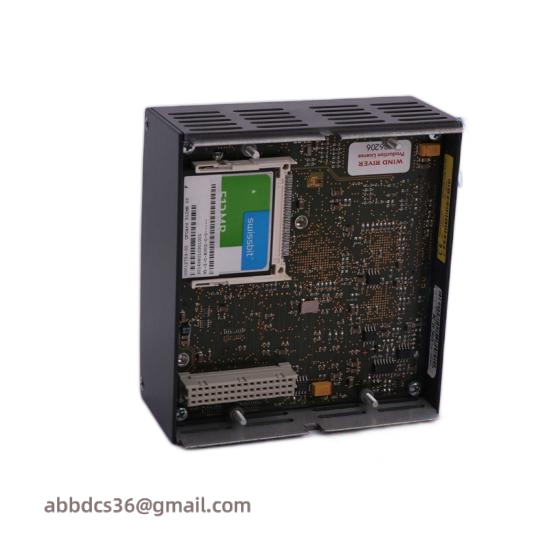

Module Type:Industrial Automation Control Module
Product ID:AIC212
Brand:Bachmann
Input Voltage:18 to 34 VDC
Current Consumption:Max. 1.2 A at 24 V
Nominal Power (Output):17 W
Communication Interfaces:2 FO interfaces; HCS/PCF 150 m or POF 40 m
Encoder Interface:HEDL (HP / AVAGO interface) / RS422
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage Range:Low: 0 to 2 V, High: 3 to 34 V, Imax = 10 mA
Counter Resolution:24 bit
Inputs:2x In INC; 1MHz; RS422; 8x DI 24V
Outputs:2x Out 150kHz; 2x Out ±10V
Acceleration Modes:Linear/Sine²/Parable
Controlled Motor Types:Stepper Motor
Other Features:Without power amplifier; encoder supply 5V / 15V
The Bachmann AIC212 Industrial Automation Control Module is engineered for demanding industrial environments. It features robust design with a focus on precision and reliability, offering flexibility in input/output configurations. Key features include support for multiple interface types like Fiber Optic (FO), RS422, and Serial Synchronous Interface (SSI). This module supports up to 32-bit counter resolution, enabling highly accurate positioning tasks. With outputs capable of ±10V, it can efficiently handle a wide range of operational demands. Additionally, its capability to operate with up to 1 MHz frequency ensures swift response times, critical in fast-paced manufacturing processes. The module supports multiple acceleration modes—linear, sine², and parabolic—to tailor control precisely according to application requirements. Its ability to synchronize operations with pre-sync functionality makes it indispensable in systems requiring high synchronization accuracy.
