Input Voltage (AC):100-240V AC rms, 1-Phase
Frequency Range (AC):47-63 Hz
Main AC Input Current:9 A
Continuous Output Power:1 kW
Continuous Output Current:5 A
Intermittent Output Current:15 A
Bus Overvoltage Protection:452V DC
Shunt On Voltage:420V DC
General Purpose Inputs:8 selectable
General Purpose Outputs:4 selectable
Serial Communication Ports:1 (RS232 & RS485)
Multi-turn Absolute Encoders Support:Embedded
External Logic Power Supply:Option available
Dimensions:242.2 x 360.7 x 138.7 mm
Weight:Approx. 2.2 kg

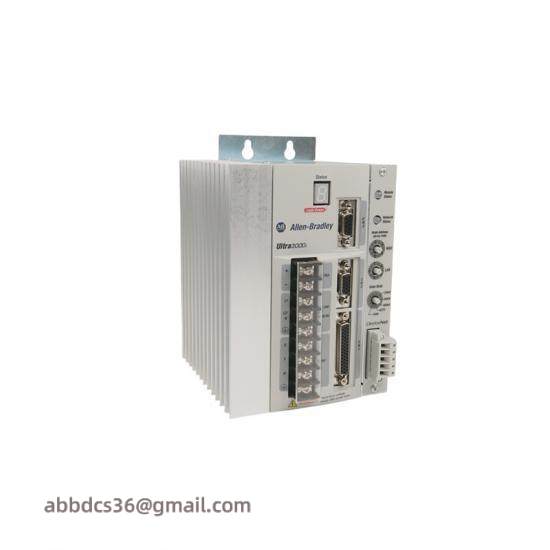

Engineered for industrial precision, the Allen-Bradley 2098-DSD-010X-DN Digital Servo Drive boasts advanced motion control capabilities that enhance productivity and efficiency in automated systems.
Featuring an ultra-compact design measuring just 144.27 x 72.64 mm, this drive seamlessly integrates into space-constrained applications without compromising performance.
With a robust input voltage range of 100-240VAC and a continuous output power of 1kW, it caters to a wide array of industrial needs, ensuring reliable operation across various settings.
Equipped with eight selectable general purpose inputs and four selectable general purpose outputs, this drive offers unparalleled flexibility in configuring control signals for diverse applications.
Embedded support for multi-turn absolute encoders ensures accurate position feedback, crucial for applications requiring high repeatability and precision.
For added convenience, the drive allows users to maintain actuator positions even during power loss, thanks to the option for external logic power supply.
