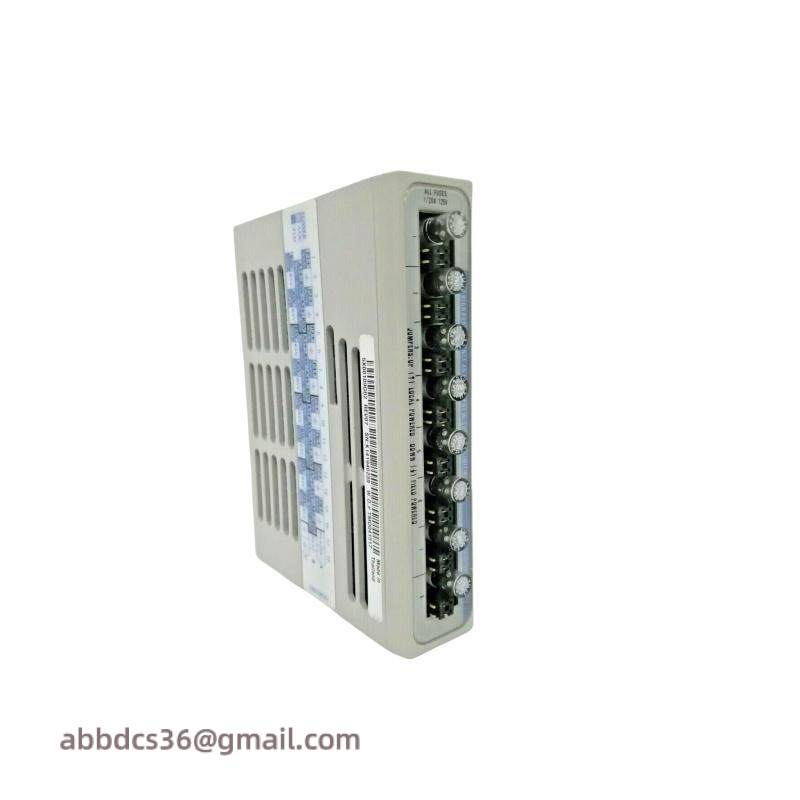

Emerson 5X00109G02 – High Performance Analog Input Module

Operating Range:0-5V DC

Input Resolution:14-bit

Sampling Rate:200 samples/sec

Environmental Conditions:-20°C to +60°C

Power Consumption:Max 2W

Communication Interface:RS485 Modbus

Enclosure Rating:IP20

Material:Ruggedized aluminum alloy

Size:75mm x 50mm x 30mm

    Introducing Emerson’s 5X00109G02 High Performance Analog Input Module, designed for the most demanding industrial environments. This module is built on a robust platform that ensures seamless integration with your existing control systems, enhancing operational efficiency.

    With an operating voltage range of 100-240 V AC, this module is versatile enough to operate in a wide variety of industrial settings. Its low current consumption of ≤ 50 mA helps in conserving energy and reducing costs.

    Featuring an input range of ±10 V, the 5X00109G02 provides exceptional flexibility for various measurement applications. Coupled with a high sampling rate of 100 kS/s and a resolution of 16-bit, it offers unparalleled precision and accuracy.

    Precision doesn’t come at the cost of speed. The 5X00109G02 delivers ±0.02% FS accuracy, ensuring reliable data acquisition even under fluctuating conditions. Its RS-485 Modbus RTU interface facilitates smooth communication, enabling easy setup and maintenance.

    Built to withstand harsh environmental conditions, this module operates effectively within a temperature range of -10°C to +55°C during operation and -20°C to +85°C for storage. This durability ensures longevity and reduces downtime, contributing significantly to your productivity.
