Dimension:120mm x 60mm
Material:Rigid FR-4 composite
Operating Temperature Range:-20°C to +85°C
Operating Voltage:DC 5V
Current Capacity:Max 2A per pin
Number of Pins:40-pin DIP
Connectivity:SMT compatible, JST connector
Operating Frequency:Up to 1GHz

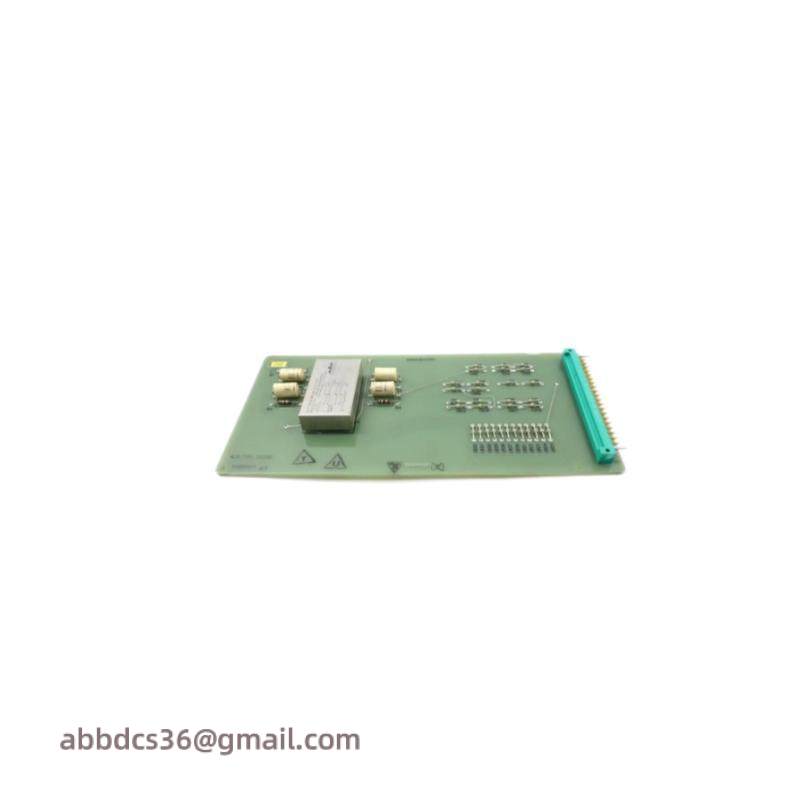

Our GE 114D9423G3 & 114D9422-B Printed Circuit Boards are meticulously designed for industries requiring precise and dependable control solutions. They feature a robust construction with a high-grade copper-clad laminate material, ensuring durability under extreme conditions.
Equipped to withstand wide temperature ranges from -40°C to +85°C, these PCBs are engineered for long-term reliability, crucial for continuous operation in demanding environments.
With a continuous current rating of 5A and a peak current capacity of 10A, they provide ample power for industrial applications without compromising on efficiency. This makes them suitable for a wide array of control systems, enhancing operational capabilities.
The MTBF of over 100,000 hours signifies an exceptional level of durability and minimal downtime, which is critical for maintaining productivity in manufacturing processes.
These PCBs have undergone rigorous testing and are certified by UL, CE, and CSA, ensuring they meet the highest safety standards and are compatible with international regulations.
