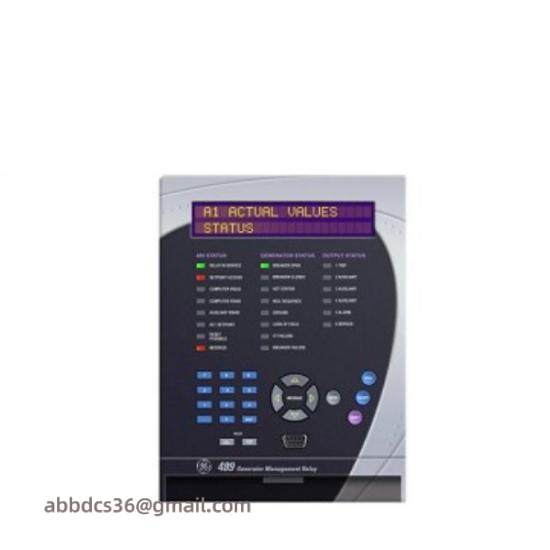

GE 489P1HIA20E Industrial Control Relay, Advanced Generator Management for Enhanced Performance

In stock

The GE 489P1HIA20E is a state-of-the-art relay module designed for high-performance control systems in industrial environments. It ensures precise monitoring and control over critical processes with advanced protection and safety features.

Test Level:2.5KV, 1.0 MHz

Ground Overcurrent Curve Shapes:ANSI, IEC, IAC, Flexcurve

Mounting Method:Definite Time Mounting

Operating Temperature Range:-40 to 60°C

Dielectric Strength:1.9 kV AC for 1 second or 1.6 kV AC for one minute

Shipping Weight:7.7 kg or 17 lbs

Tachometer Duty Cycle:> 10%

Trip Coil Supervision:Yes

Trickle Current:2 to 5 mA

Underfrequency Pickup Accuracy:±0.02 Hz

Analog Current Output Isolation:36 Vpk

Case Drawout:Fully drawout (automatic CT shorts)

Digital Inputs:489

Sensor Supply:24 V DC at 20 mA max

Impedance Time Delay:0.1 to 100.0 s in steps of 0.1

Negative Sequence Overcurrent Pickup Level:3 to 100% FLA in steps of 1

Phase Distance Characteristics:Offset mho

RTD Inputs Sensing Current:5 mA

Sequential Trip Configurable:Assignable to Digital Inputs 1 to 7

Maximum Altitude:2000 m

Overvoltage Category:II

Sinusoidal Vibration Test Level:Class 1

Voltage Phase Reversal Configuration:ACB or ABC

Phase Rotation:Available

The GE 489P1HIA20E Industrial Control Relay is designed with advanced technology to provide superior performance and reliability in industrial applications. It is engineered to support critical operations in power generation and distribution systems, ensuring seamless operation in challenging environments. With its robust design, this relay offers high accuracy and reliability, making it an essential component for industrial automation and control systems.

This relay comes equipped with a variety of protective and monitoring features, including ground overcurrent curve shapes, tachometer duty cycle, and trip coil supervision. Its compatibility with a wide range of input signals makes it a versatile solution for various industrial applications. Additionally, its easy installation options through panel or 19″ rack mount make it a convenient choice for system integrators.

Designed to withstand harsh conditions, the GE 489P1HIA20E Industrial Control Relay features an operating temperature range from -40°C to 60°C and can operate at altitudes up to 2000 meters. It also meets stringent standards for dielectric strength and vibration testing, ensuring long-term durability and performance.

GE 489P1HIA20E
