Compatibility:Compatible with J, K, and M-style Mark V Series frame components
Voltage Rating:1500 V rms maximum AX Voltage
Hardware Components:Comprises resistors, capacitors, diodes, and integrated circuits for precise voltage limiting
Drill Holes:Factory-drilled in several locations with insulation around each hole
Reactors and Fuses:Utilizes Leg reactors and fuses for enhanced safety and efficiency
Bus Transformers:Employing separate or common bus transformers for robust power distribution

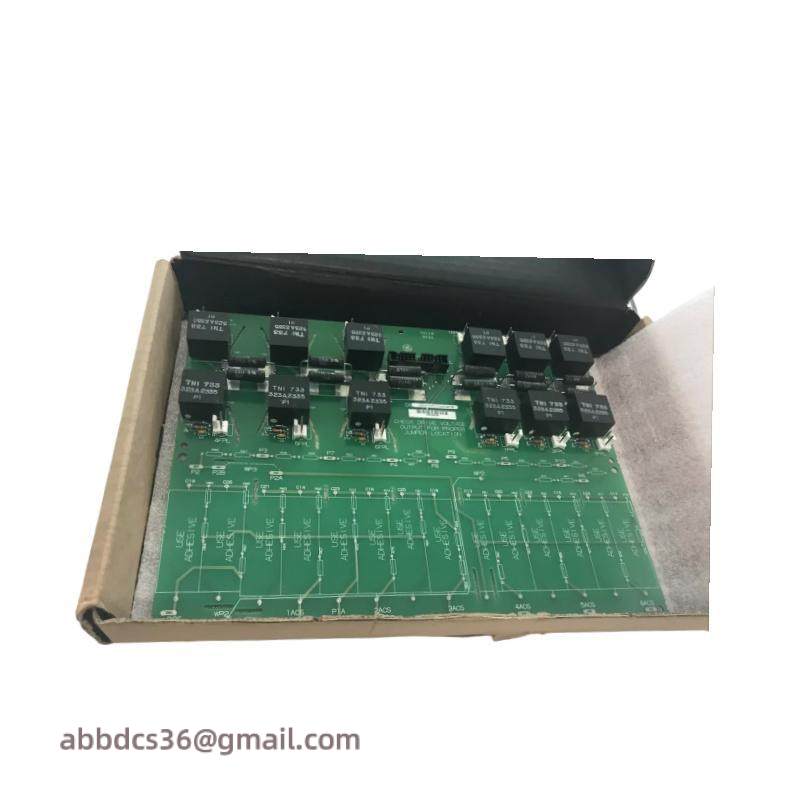

The GE DS200PCCAG5ACB Power Connect Card is meticulously designed for integration into the GE Industrial Control Systems’ Mark V series, offering unparalleled performance and reliability.
Equipped with a robust base circuit board featuring strategically placed drilled holes insulated with protective materials, ensuring durability and safety.
Leg reactors and fuses, alongside separate or common bus transformers, contribute to the card’s efficient power management capabilities, making it a critical component in high-voltage applications.
With a maximum AX voltage rating of 1500 V rms, the DS200PCCAG5ACB is compatible with a wide range of J, K, and M-style Mark V Series frame components, facilitating versatile installation options.
Comprising four essential wire jumpers (WP4, WP3, JP2, JP1), the card facilitates precise electrical connections, enhancing system stability and reducing downtime.
Engineered for operation within extreme temperature ranges (-40°C to +85°C), the DS200PCCAG5ACB ensures continuous performance in challenging industrial environments, making it a reliable choice for demanding applications.
